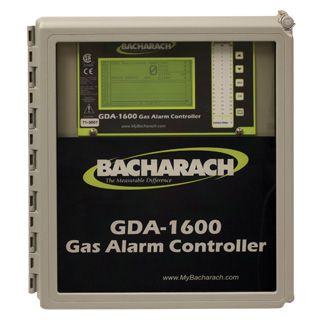

5700-1600 GDA-1600 Sixteen Channel Alarm Controller with Display, NEMA 4X Enclosure by Bacharach

Bacharach's all new GDA-1600 Controller offers premier performance and functionality in a standalone controller. From one to sixteen channels, the GDA-1600 is designed to provide operators the most detailed, real time information about gas concentrations throughout the facility. Information is relayed to the operator through a large LCD display that shows real time gas concentrations, sensor location, sensor type, as well as historical data trends. Each channel has three independent, user-programmable alarm threshold values that allow for flexibility in alarm notification. When alarms do occur, operators are notified via LED alarm indicators on the front panel, clearly showing which channel is in alarm and the alarm state. Internal relays can also be utilized to control fans, horns, or beacons when alarm thresholds are exceeded. When responding to alarms, information is critical. The GDA-1600 provides more details than any other controller on the market today.

The GDA-1600 is equipped with a fault and three alarm levels per channel with features such as ON/OFF delays, latching relays and alarm acknowledge. A dedicated horn driver circuit for a local audible alarm is also standard. Two standard, 5-amp alarm relays are configurable via the "alarm voting" menu to make relays trip based upon various alarm combinations. If more relays are required optional relay boards can be added.

Real-Time clock and calendar are standard on the GDA-1600. Options such as 4-20 mA outputs and discrete relays are easily added. RS-485 (Modbus® RTU) or Ethernet (Modbus® TCP) ports are also available for flexibility in sending data to PC's, PLC's, DCS's, or other controllers. The GDA-1600 has complete calibration functionality for each input channel. This unique feature allows maintenance and service personnel to use the controller to calibrate the Bacharach GDX-150 simple sensor.

GDA-1600 Features & Benefits:

  • Accepts up to 16 inputs, outputs and relays
  • Graphic LCD for real time monitoring and 30-minute/24 hour data trends
  • Complete calibration functionality for each input channel
  • Three independent alarm levels per channel
  • Non-volatile memory retains all configuration data
Analog Inputs (Optional) 12 Bit 4-20 mA into 100 ohms Input Impedance; Includes +Power Supply Terminals for Each Channel for Routing Power to 2 or 3 Wire Transmitters, Single Sensor, 30 Foot Diameter
Dimensions 13.0" x 16.0" x 8.63" (33.02 cm x 40.64 cm x 21.9202 cm)
Housing Options NEMA 4X Fiberglass Wall Mount
1/2 Length 19 Inch Rack /Panel Mount
NEMA 7 Explosion-Proof Wall Mount (Consult Factory)
User Interface 128 x 240 Pixel Graphic LCD with Backlight Displays
Bar Graphs, Trends and Engineering Units
52 Discrete LED’s Indicate Alarm Status for 3 Alarms per 16
Channels and Common Relays
24 Hour Datatrending
Common Alarm Relays 5-amp 30 VDC or 250 VAC Resistive Form C
Discrete Alarm Relays (Optional) 5-amp 30 VDC or 250 VAC resistive Form C (8 Per Card)
Serial Ports Master & Slave RS-485 Half or Full Duplex Ports Equipped with Tx / Rx LED’s. Protocol = Modbus® RTU
Analog Outputs (Optional) 10 bit 4-20 mA Output. Max Load 800 ohms with Nominal 24 VDC Power Supply
Ambient Temperature Range 13° to 140° F (-25° to +60° C)
Power 10 - 30 VDC (24 VDC Nominal) 12 Watts Max
Approvals CSA C22.2 No 1010.1 & 152 for Combustibles & ISA S82.02; UL 1604 / C22.2 No 213 (Div 2 Groups A,B,C,D); EN55011 & EN61000; CE Mark
