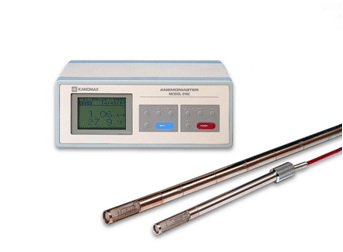

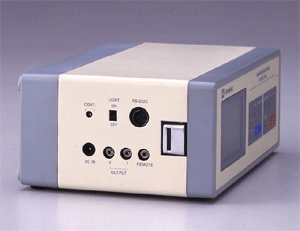

Kanomax 6162 Middle and High Temperature Anemomaster
Item #:
6162
Brand:
Kanomax
Share this product:
6162 Middle and High Temperature Anemomaster by Kanomax
Features:
- Air velocity and temperature measurements in 932°F (500°C)environments
- Record and recall MAX / MIN / AVG, Timing graph display
- Store up to 999 measurements
- RS232C interface, analog output, and remote control terminal equipped
- Includes shoulder strap, AC adapter, 2 pcs. analog output cable, and 6 pcs. C cell batteries
Model |
Probe Model 0203 for middle temperature |
Probe Model 0204 / 0205 for high temperature |
|
| Air Velocity | 32 - 212 ºF (0 – 100ºC) |
40 – 9840fpm (0.2 – 50m/s) |
|
| 212 - 392 ºF (100 – 200ºC) |
80 – 9840fpm (0.4 – 50m/s) |
||
| 392 - 572 ºF (200 – 300ºC) |
n/a |
138 – 9840fpm (0.5 – 50m/s) |
|
| 572 - 752 ºF (300 – 400ºC) |
n/a |
197 – 9840fpm (1.0 – 50m/s) |
|
| Air Temperature | Range | 32 - 392 ºF (0 – 200ºC) |
32 - 932 ºF (0 – 500ºC) |
| Accuracy | Air Velocity | ± 3% |
|
| Air Temperature | ± 1% of reading + 1ºC |
||
| Pressure (Option) | Range | -5.00 to +5.00 kPa |
|
| Outputs | Digital | RS-232C |
|
| Printer | Printing calculation results and measurements. |
||
| Analog | DC 0 to 1 V |
||
| Input | Remote | Start / Stop function |
|
| Power Supply | 6 × 1.5 V C cells / AC Adapter (100 to 240 V) |
||
| Operating Environment | Main Body | 41 - 104 ºF (5 – 40 ºC) |
|
| Weight | Main Unit | 4.0 lbs. (1.8 kg) |
|
| Probe | 0.4 lbs. (0.2 kg) |
1.1 lbs. (0.5 kg) |
|
| Dimensions | Main Unit | 8.7” x 5.9” x 3.3” (220 x 150 x 85mm) |
|
| Probe | Diameter: 0.43" (11mm) Length: 8.2" (208mm) |
0204: Diameter: 0.43" (11mm) Length: 39.4" (1000mm) 0205: Diameter: 0.43" (11mm) Length: 19.7" (500mm) |
|
| Extension Rod (Option) | Length: 31.5" (800mm) |
Length: 81.5" (2070mm) *Not compatible for 0205 |
|
| Standard Kit | Operation manual, AC adapter, Analog output cable,
Shoulder strap, Batteries |
||
| Optional Accessories | Spare Probe, Probe extension cable, Probe extension rod,
Probe compression fittings, PC communication cable,
Data processing software |
||
