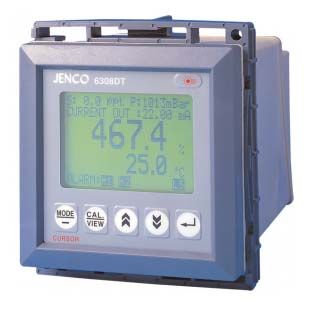

Jenco Analyzer Graphic Display, 5-Relays, IP-65, RS-485 - 6308DT
Item #:
6308DT
Brand:
Jenco
Share this product:
6308DT Analyzer Graphic Display, 5-Relays, IP-65, RS-485 by Jenco
D.O. analyzer, 1/4 DIN panel mount IP-65 waterproof case, polarographic sensor with replaceable membranes and programmable pressure and salinity compensation. Features 4 fully programmable D.O. relays and 1 for temperature. Has an RS-485 interface and is password protected. Analog 4-20 mA output is fully programmable and reversible. Graphical display. Connections are tinned leads. CE Approved.
- Bright, graphical LCD display, 1.5 x 2.25
- Simultaneous measurement and analysis
- 1/4 DIN watertight, ip65 rated enclosure
- Reversible & isolated 4 to 20ma output with adjustable bandwidth
- Continuous controller / relays operation during calibration
- 4-digit password security protection
- Programmable set point hysteresis
- Automatic temperature compensation
- CE approved
- Built in ISO9001 certified facility
- Membrane keypad with audio feedback
- Power down, non-volatile memory backup
| Range | Dissolved Oxygen (ppm): 0.0 to 60.00 ppm Dissolved Oxygen (% ): 0 to 500.0% Temp.: -10.0 to 120 °C |
| Resolution | Dissolved Oxygen (ppm): 0.01 ppm Dissolved Oxygen (% ): 0.1 % Temp.: 0.1 °C |
| Accuracy | Dissolved Oxygen (ppm): ± 0.2% of span Dissolved Oxygen (% ): ± 0.2% of span Temp.: ±0.1°C ±1 LSD |
| DO | |
| Salinity compensation | 0.0 to 40.0 ppt |
| Pressure compensation | 600 to 1100 mbar |
| Polarographic sensor | Yes |
| Replaceable membranes | Yes |
Output Relays |
|
| Control type | On/off |
| Relay output (resistive load only) | 5amps at 115 VAC 2.5 amps at 230 VAC |
| Relay set point hysteresis | User programmable |
Current Output |
|
| Type | Isolated 4 to 20 mA |
| Range | Selectable zero, & span |
| Accuracy | ±0.02mA |
| Isolated voltage | 1000 VAC |
| Maximum load | 500 w |
General |
|
| ATC sensor | Thermistor 10kilo ohms at 25 °C |
| Security protection | 4digit password |
| Keypad | Audio feedbackup |
| Communication | RS-485 |
| Pre-amplifier voltage | ±5 VDC,20mA max output |
| Power source | 115/230 VAC, 50/60hz |
| Dimensions | 1/4 DIN, depth 155mm |
| Weight | 950 gm |
