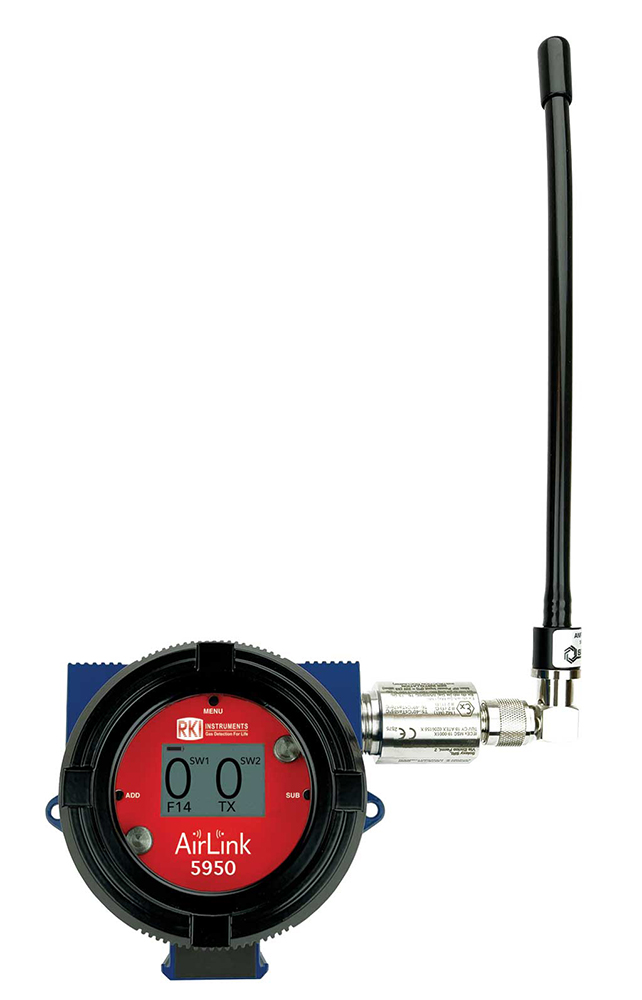

RKI Instruments AirLink 5950 Dual Switch-state Transmitter, explosion proof, 900 MHz radio, battery powered - 66-5950-9

Item #:

66-5950-9

Brand:

RKI Instruments

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

66-5950-9 AirLink 5950 Dual Switch-state Transmitter, explosion proof, 900 MHz radio, battery powered by RKI Instruments

The RKI Instruments AirLink 5950 is a wireless dual switch-state transmitter, compatible with any dry contact switch. Using a monitor allows the unit to utilize relays and Modbus output. Magnetic switches allow for non-intrusive calibration while in the field as well as full system setting and diagnostics

Features

Connectivity for up to 2 switches
Battery powered - 3.6 V, 19 Ah
102x64 graphical LCD display with LED backlight transflective (sunlight readable)
Wireless communication: 900 MHz radio and 52 networks; 2.4 GHz radio and 78 networks
Radio transmission every 2 minutes with no change from device, every 5 seconds with change from device (user configurable)
Allows for use of multiple receivers in multiple locations
3 Push-button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non-intrusive switches
QPS certified; Class I, Div 1, groups C & D
1-Year warranty

*Please note we can only ship RKI products to customers within the United States

Specifications

Sensor Type	Any sensor of device with a sensor output
Operating Voltage	3.6V, 19 Ah battery
Display Screen	102x64 Resolution graphical LCD Display transflective (sunlight readable) with LED backlight
Interface	3 Magnetic non-intrusive push buttons (MENU, ADD and SUB)
Temperature Range	-40°C to +60°C
Wireless Radio Options	900 MHz radio or 2.4 GHz ISM
Networks	1-52 Networks (1-78 for 2.4 GHz) 1-255 addresses per network
Product Dimensions	5.42 in. L x 6.03 in. D x 12.16 in. H (Max. dimensions with attachments)
Total Weight	4.8 lbs.
Certifications	QPS Certified Class I, Div. 1, Groups C & D
Warranty	1-Year limited
