GMI Gasurveyor 700 Infrared Gas Leak Detector, LEL / Volume / CO (Rechargeable) - 7100300R0000

Item #:
7100300R0000
Brand:
GMI
$4,123.78
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
GMI Gasurveyor 700 Infrared Gas Leak Detector, LEL / Volume / CO (Rechargeable) - 7100300R0000

GMI Gasurveyor 700 Infrared Gas Leak Detector, LEL / Volume / CO (Rechargeable) - 7100300R0000

$4,123.78

7100300R0000 Gasurveyor 700 Infrared Gas Leak Detector, LEL / Volume / CO (Rechargeable) by GMI

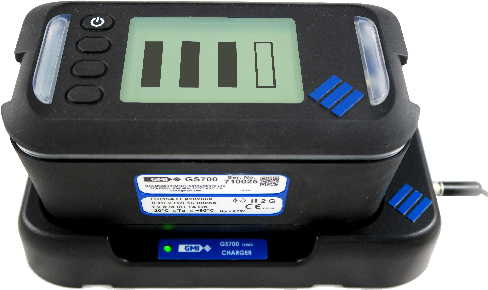

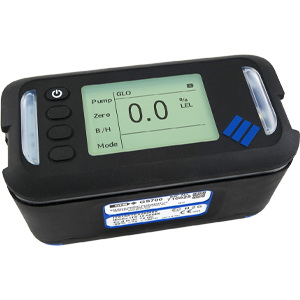

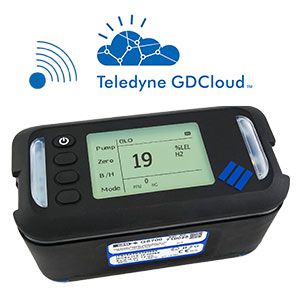

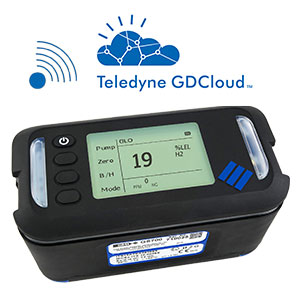

Utilising the latest infrared gas detection technology in a robust and reliable design, the Gasurveyor 700 (GS700) is a highly configurable instrument with leading performance and a user-friendly interface which makes it the perfect choice for all gas utility applications.

Ensuring compliance

Intelligent data-logging functionality together with optional GPS mapping simplifies data gathering. Our Instrument Management System improves fleet management by providing access to field usage reports, calibration history, investigation mapping and many other bespoke reports; making it easier for our customers to demonstrate compliance.

Natural gas discrimination

Quickly determines the source of gas leaks, whether it's pipeline gas or naturally occurring biogas; saving valuable time and reducing detection related costs.

Flexible configuration

The GS700 can be configured to meet specific application needs and can be customised to suit a range of user requirements, settings and languages.

Application ready

Highly configurable to our customers' gas detection needs, providing flexibility of use without compromising on performance.

Application modes include:

  • Gas Leak Outdoors
  • Purge
  • Search
  • Barhole
  • Confined Space

Additional Features

  • LEL & Volume Gas (infrared)
  • Optional sensors including: PPM, O2, CO, H2S
  • Barhole Mode - configurable
  • Soft-key Operation
  • Communication: IrDA & Bluetooth (optional)
  • 360° Alarms
  • Lightweight & Rugged
  • Ingress Protection - IP55
  • Alkaline or Rechargeable battery options
°
Size: 190 x 98 x 107 mm
Weight: 1.4 kg (Alkaline), 1.3 kg (Rechargeable)
Display: Monochrome LCD with automatic backlighting
Temperature: -20° C to +50° C (-4° F to +122° F)
Humidity: 0 - 90% RH non-condensing
Sampling: Integral pump with flow fail sensor; sample path is protected by a hydrophobic & cotton filter
Alarms: 360° Highly visible flashing LED
Sounder ~ 85 dB at 0.3 m
Datalogging: Capacity: 500 session logs
Session log: user ID, date & time, gas readings, alarms, calibration / bump test data, barhole data, PGT logs
» Log Extraction: Infrared or Bluetooth (optional)
» Location data via GPS (optional)
GPS: Logs the GS700 location (optional).
Extracted location data is stored with a date / time stamp.
Battery: 3 x LR20 ‘D’ size Alkaline Cells or Rechargeable Battery Pack
Battery Life: Typically: 15 hrs Alkaline, 20 hrs Rechargeable
Charge Time: Typically: 6 hrs
Construction: Antistatic Polycarbonate ABS with conductive TPE over-moulding
Rating: IP55 (Protected from Dust & Water Jets)
Warranty: 2 years
