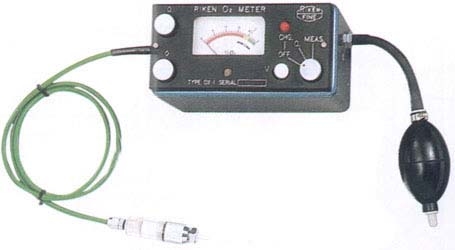

RKI Instruments OX-1C Sample Draw Analog Oxygen Monitor 0 - 25% Vol. Oxygen (O2) - 72-0015RK
Item #:
72-0015RK
Brand:
RKI Instruments
Share this product:
72-0015RK OX-1C Sample Draw Analog Oxygen Monitor 0 - 25% Vol. Oxygen (O2) by RKI Instruments
Intrinsically Safe Model OX-1, self-contained sensor type, provides the meter scale 0 ~ 25% as standard. The Sample gas is drawn by hand aspirator bulb or optional detachable suction pump, Other ranges are also provided. The OX-1 is convenient model for determination of oxygen concentration not only for safety purpose but also for process control or laboratories use.
Especially 0 ~ 25% or 0 ~ 10/0 ~ 25% dual range is suitable for utility and industrial inerting operations where purged atmospheres need to be tested for residual contents of oxygen.
Features
- Intrinsically safe 3nG5 (single range), 3aG4 (dual range) in Japan
- Available for low or high ranges
- Always ready to use, no warm up time
- Available for remote detection by optional length of sampling hose
- 500 hours continuous operation at full charge
- Approved by NK (NK register of shipping in Japan) and HK (Ship equipment inspection society of Japan)
*Please note we can only ship RKI products to customers within the United States
| Principle | Electrochemical cell |
| Sampling method | Sampling drawing by hand aspirator bulb |
| Built-in sensor type | |
| Range | 0 ~ 25% (standard) oxygen content |
| Redout | Analog meter |
| Accuracy | Range: 0 ~ 25%, or 0 ~ 25/0 ~ 10%, Better than ±0.7% by volume of indication value at constant temp. (Complies with JIS T-8201) |
| Operating temp. | -10°C ~ +40°C |
| Power source | Ni-Cd rechargeable batteries. |
| Battery life | Above 500 hours (fully charged) continuous operation between charges (15 hours recharging) |
| Dimensions | 170(W) x 130(H) x 85(D)mm |
| Weight | 2 kgs |
| Explosion proof | Intrinsically safe. 3nG5 in Japan |
| Life expectancy of the sensor | Above 24 months |
| Warranty | 1 year material & workmanship |
