RKI Instruments FP-31 Portable Formaldehyde Monitor - 73-1063

Item #:
73-1063
Brand:
RKI Instruments
RKI Instruments FP-31 Portable Formaldehyde Monitor - 73-1063
$1,103.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
RKI Instruments FP-31 Portable Formaldehyde Monitor - 73-1063

RKI Instruments FP-31 Portable Formaldehyde Monitor - 73-1063

$1,103.00

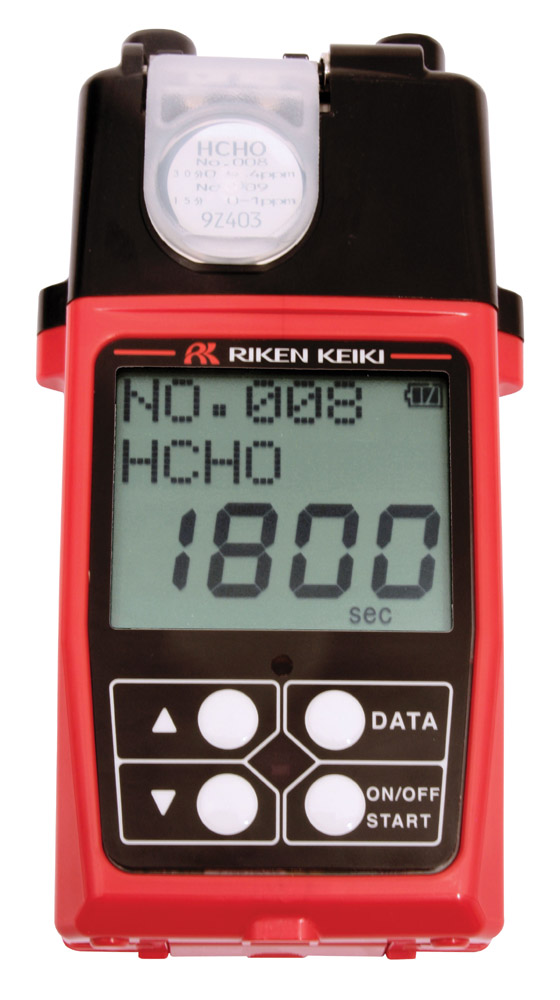

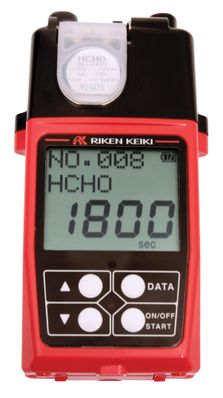

73-1063 FP-31 Portable Formaldehyde Monitor by RKI Instruments

The FP-31 is a highly sensitive portable gas detector specific for formaldehyde detection. It uses a photoelectric photometry method which utilizes colorimetric tablets for detection. A tablet in placed into the instrument, and then a room air sample is pumped onto the tablet for either a 15 minute or a 30 minute period. If formaldehyde is present, it will cause the chemically impregnated tablet surface to darken or stain. The magnitude of the stain directly correlates to the level of formaldehyde in the air. The stain darkness is read by an optical sensor in the FP-31, and then the instrument calculates the formaldehyde concentration. The FP-31 then has a direct readout of the formaldehyde measurement on an easy to read LCD display. The unit is capable of detecting very low levels of formaldehyde, in order to confirm if an area contains safe breathing levels. There are no known interfering gases, as shown on the chart on the reverse side of this sheet.

Features

  • Simple operation
  • Built-in sample draw pump
  • Easy to read LCD display
  • Self-diagnosis
  • Uses photoelectric photometry technology
  • Direct digital readout
  • Colorimetric detection tablet method
  • No false readings from interfering gases
  • Operates on 4 AA alkalines
  • Stores 99 readings
  • No warm up time

Applications

  • Furniture and woodworking
  • Coating and varnishing
  • Engineered wood products
  • Medical / veterinary
  • Painting & corrosion resistant finishes
  • Carpet manufacture & storage
  • Adhesives
  • Heat treatment operations
  • RV/Trailer/mobil home inspecting

*Please note we can only ship RKI products to customers within the United States

Detection gas
Formaldeyde (HCHO) in air
Detection range
0-0.4 ppm (0.005ppm/digit)
0-1.0 ppm (0.01 ppm/digit)
Detection time
30 minutes (1,800 sec.)
15 minutes (900 sec.)
Detection principle
Photoelectric photometry method
Detection method
Colorimetric tablet method (accumulating measurement)
Accuracy
± 10% of reading or ± 5% of full scale (which ever is greater)
Display
Digital LCD
Sampling method
Sample drawing with built-in pump
Operating conditions
-10 ~ 40°C (14 ~ 104°F), below 90%RH
Memory
Up to 99 readings (automatic recording at the completion of measurement)
Self-diagnosis
Failure of light source and light receiver, low battery voltage, pump failure, system trouble
Power Source
AA size Alkaline batteries (quantity 4)
Continuous Operation
Approximately 12 hours (with no alarm or backlight, with alkaline batteries at 20°C)
Dimension
Approx 85(W) x 190(H) x 40(D)mm, 3.35(W) x 7.48(H) x 1.57(W)
Weight
500g, 17.6 oz
Standard Accessories
# Detection TAB (20 pcs/pack)
# Carrying case
# AA size alkaline batteries
# Operating manual
Optional Accessories
Zero and span tab, datalogging software, USB-IRdA cable (for downloading stored data)
Warranty
One year material and workmanship
