RKI Instruments SC-9000 Toxic Gas Detector, SiH4 (0-15.0ppm), Li-ion with AC adapter - 73-9XJX-B
Item #:
73-9XJX-B
Brand:
RKI Instruments
Share this product:

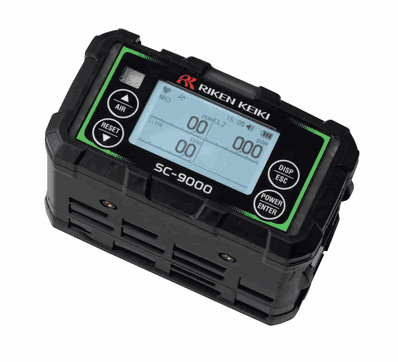

73-9XJX-B SC-9000 Toxic Gas Detector, SiH4 (0-15.0ppm), Li-ion with AC adapter by RKI Instruments
The SC-9000 sets the new industry standard for rugged, reliable portable toxic gas detection. Featuring a compact, lightweight, durable, waterproof, and intrinsically safe design, the SC-9000 accurately detects gas leaks in toxic gas detection applications.
Features
- Simultaneous detection of up to 3 different toxic gases
- Up to 3-year gas sensor warranty
- Detect NH3, HF, Cl2, HCl, O3, SiH4, or PH3
- Outstanding durability: Passes 1.5 m drop testing, equivalent to IP66/68 protection rating
- Bluetooth® equipped
- Inherently safe explosion-proof construction allows use in explosion-proof areas
- Continuous operating time: Approx. 60 hours
Applications
- Semiconductor, LED, Solar Cell plants
- Petrochemical, Chemical Plants
- Medical, Pharmaceutical, Food Industry H2O2 Disinfection
- Refineries
- Gas plant, Gas supplier services
- Chemical tanker
- Confined space
- Utlilities
- Monitoring toxic gas in hazardous zone
- Leak check at maintenance work
*Please note we can only ship RKI products to customers within the United States
| Concentration display | LCD digital (full dot) |
| Detection target gases | Up to 3 different gas sensors can be installed. (NH3, HF, Cl2, HCl, O3, SiH4, PH3, NO, NO2) |
| Detection method | Pump suction type |
| Suction flow rate | Minimum 0.75 L/min (open flow rate) |
| Display items | Clock, battery level, operation status |
| Display languages | English, Cantonese (Traditional Chinese), Czech, French, German, Italian, Japanese, Korean, Mandarin (Simplified Chinese), Polish, Portuguese, Russian, Slovak, Spanish, Turkish, Vietnamese |
| Buzzer volume | Approx. 95 dB (mean value at 30 cm from source) |
| Gas alarm indication | Lamp flashing, continuous modulating buzzer sounding, gas concentration reading blinking |
| Gas alarm pattern | Self-latching, auto-reset |
| Fault alarm/self-diagnosis | Flow rate abnormality, system abnormality, sensor abnormality, low battery voltage, calibration failure, clock abnormality |
| Fault alarm indication | Lamp flashing, intermittent buzzer sounding, detail display |
| Fault alarm pattern | Self-latching |
| Communication specifications | USB 2.0 Type-C (for data logger/setting), Bluetooth 4.2 (Bluetooth Low Energy) |
| Power source | Dedicated lithium ion battery unit (BUL-9000) or dedicated dry battery unit (AA alkaline batteries x6) (BUD-9000) |
| Continuous operating time | Lithium ion battery unit: Approx. 60 hours (at 25 °C, no alarm, no lighting) Dry battery unit: Approx. 30 hours (at 25 °C, no alarm, no lighting) |
| Operating temperature range | -20 °C to +50 °C (no sudden fluctuations) |
| Operating humidity range | 20 to 90 %RH (no condensation) |
| Operating pressure range | 80 kPa to 120 kPa (80 kPa to 110 kPa for explosion-proof range) |
| Construction | Dustproof and waterproof construction equivalent to IP66/68, drop resistant to 1.5 m |
| Explosion-proof construction | Intrinsically safe explosion-proof construction |
| Explosion-proof class | Japan Ex: Ex ia IIC T4 Ga ATEX: II 1 G Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga |
| Certification | CE marking |
| External dimensions | Approx. 158 mm (W) x 85 mm (H) x 132 mm (D) (excluding projections) |
| Weight | Approx. 1.1 kg |
