RKI Instruments Airlink 7010 Controller, 32 channels with 100-240 VAC power, 2.4 GHz radio - 74-7210-A

Item #:
74-7210-A
Brand:
RKI Instruments
RKI Instruments Airlink 7010 Controller, 32 channels with 100-240 VAC power, 2.4 GHz radio - 74-7210-A
$2,772.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
RKI Instruments Airlink 7010 Controller, 32 channels with 100-240 VAC power, 2.4 GHz radio - 74-7210-A

RKI Instruments Airlink 7010 Controller, 32 channels with 100-240 VAC power, 2.4 GHz radio - 74-7210-A

$2,772.00

74-7210-A Airlink 7010 Controller, 32 channels with 100-240 VAC power, 2.4 GHz radio by RKI Instruments

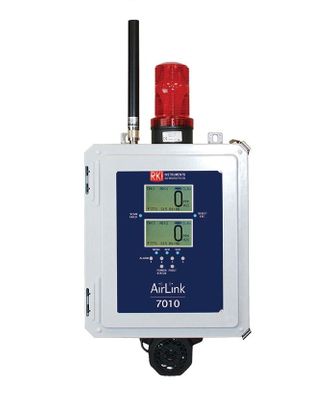

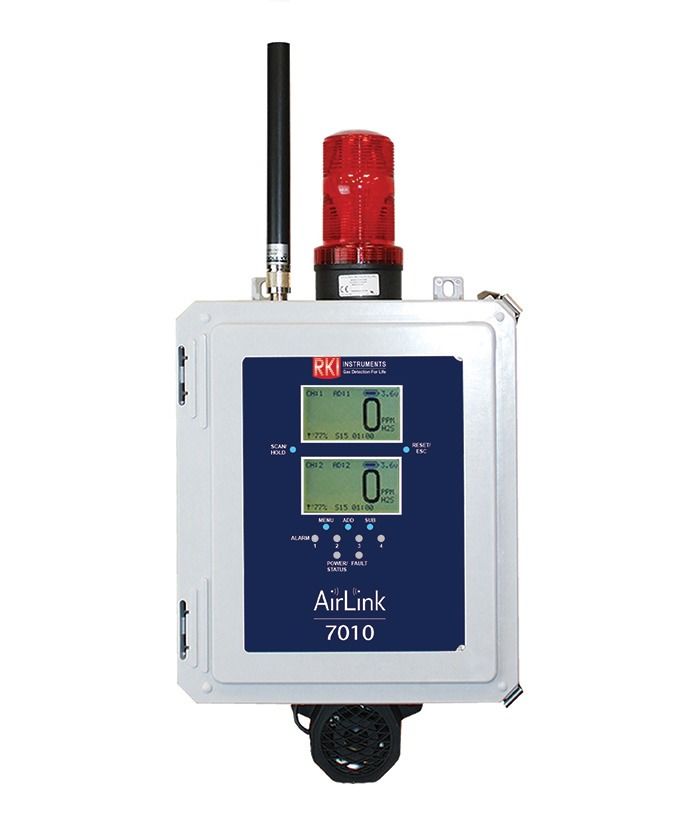

The RKI Instruments AirLink 7010 Controller is a wireless controller that supports up to 32 wireless sensor transmitter inputs. Four of the channels can be setup for 4-20 mA wired input, making this hybrid controller compatible with both wireless and wired sensors. Durable, flexible and customizable the AirLink 7010 controller has a 5 button interface, 2 LCD display with LED backlighting, and a NEMA-4X weather proof enclosure.

Features

  • 32 Channel hybrid controller - supports wireless transmitters and up to 4 wired transmitters
  • Radio options: 900 MHz radio or 2.4 GHz Standard
  • 12 to 35 VDC operating voltage with optional AC power supply
  • Operating temperature range of -40°C to +70°C
  • 5 Push-button interface (ADD, MENU, SUB, SCAN/HOLD and RESET/ESC)
  • Two graphical LCD's with LED backlights
  • Programmable alarms: 4 configurable alarm set-points; 4 front panel ALARM LED indicators (Red); 4 dry-contact relays (4 amps maximum per relay)
  • Status LEDs for power and fault: multi-color status light; Amber fault LED for indicating system faults
  • Output options: Wet contact fault DC fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
  • NEMA-4X standard fiberglass enclosure with clear window; optional stainless-steel enclosure with clear window

*Please note we can only ship RKI products to customers within the United States

Product Type 32 Channel gas monitor
Operating Voltage 12V to 35V DC or 120V AC
Current Draw 275 mA maximum at 24 VDC
Power Supply 3.13A (75W), 85/264V AC to 24V DC (optional)
Antenna Connection External N-female radio frequency (RF) connector
Customizable Settings Option to disable alarm relays
Protection Power electromagnetic interference (EMI) filter
4-20 mA surge suppression
RS-485 surge suppression
Display Screen 2 graphical LCD screens with 128x64 resolution transflective (sunlight readable) with LED backlight
Interface 5 Push-buttons (MENU, ADD, SUB, SCAN/HOLD and RESET/ESC)
Temperature Range -40°C to +70°C
Wireless (Digital), Wired (Analog) Input Up to 32 Wireless sensor inputs, up to 4 can be 4-20 mA wired analog 4-20 mA inputs
Digital Output RS-485 Modbus
Alarm Indications Strobe light and horn mounted on case (optional)
Relays • 4 Dry-contact relays with 4 amp replaceable fuses
• Individually set full scale, normally open or normally closed, latching or non-latching and fault terminal
Product Compatibility Wireless: AirLink 6900 Transmitter, AirLink T3A, AirLink VOC Pro, AirLink Alert
Wired (4-20mA): M2A, S2, T3A, VOC Pro, and Air Alert
Wireless Radio Options 900 MHz radio
2.4 GHz radio
Networks 52 Networks (900 MHz radio)
78 Networks (2.4 GHz radio)
255 Addresses per network
Enclosure Materials NEMA-4X fiberglass enclosure, with clear window (available in stainless steel)
Add On Hardware Optional strobe and/or horn attached (uses one relay)
Product Dimensions 10 in, L x 8 in. D x 6 in. H (Max. dimensions with attachments)
Total Weight 8.20 lbs
Product Mounting 4 Mounting feet, 6 in. D x 12-1/4 in. T (included), Maximum mounting bolt/screw size of 5/16 in. (8mm) diameter
Hardware Warranty 1-Year limited
