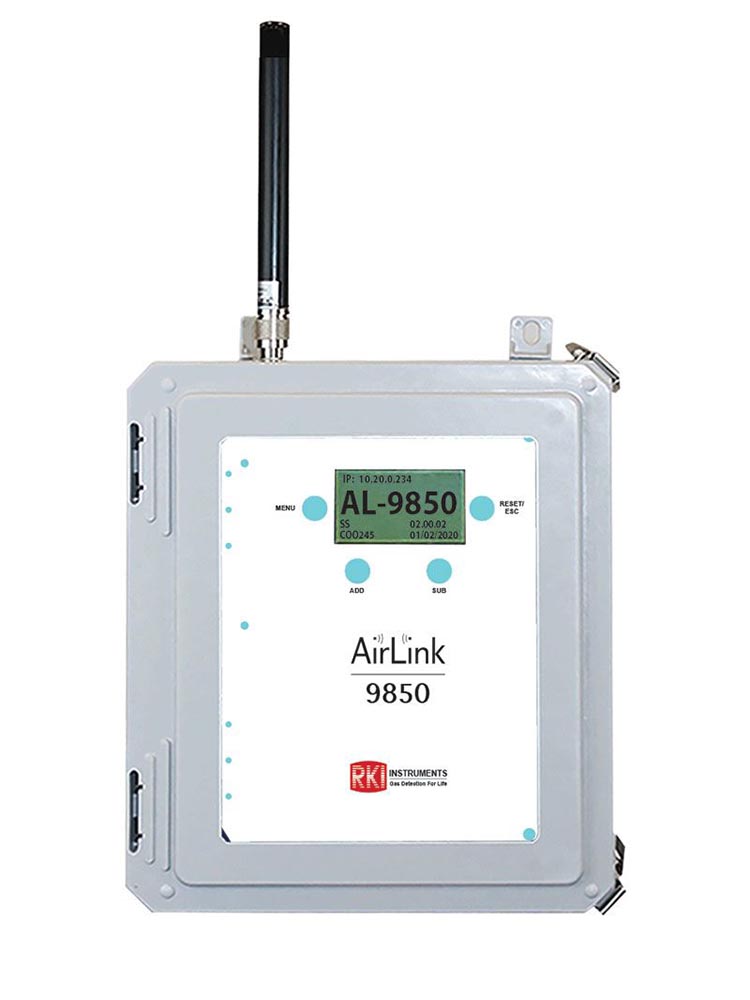

RKI Instruments AirLink 9850 255 Channel Interface, with AC Power Supply with 0 4-20 mA Out, with Holes, without Power Cord, 900MHz - 74-9850-9-A-0

Item #:
74-9850-9-A-0
Brand:
RKI Instruments
RKI Instruments AirLink 9850 255 Channel Interface, with AC Power Supply with 0 4-20 mA Out,  with Holes, without Power Cord, 900MHz - 74-9850-9-A-0
$2,646.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
RKI Instruments AirLink 9850 255 Channel Interface, with AC Power Supply with 0 4-20 mA Out,  with Holes, without Power Cord, 900MHz - 74-9850-9-A-0

RKI Instruments AirLink 9850 255 Channel Interface, with AC Power Supply with 0 4-20 mA Out, with Holes, without Power Cord,...

$2,646.00

74-9850-9-A-0 AirLink 9850 255 Channel Interface, with AC Power Supply with 0 4-20 mA Out, with Holes, without Power Cord, 900MHz by RKI Instruments

The RKI Instruments 9850 Interface wireless receiver is capable of monitoring all 255 wireless addresses and converting the signals to a RS-232 or RS-485 Modbus output. Designed to be used in conjunction with an existing PLC, computer or SCADA system currently in place. Other digital outputs include Ethernet-toWebsite and USB Virtual COM PORT. If analog output is required, an optional Analog Card is available and provides a 4-20mA output for up to 32 wireless sensors.

Features

  • 255 Channel wireless interface - all addresses on configured network
  • Radio options: 900 MHz radio or 2.4 GHz Standard
  • 12 to 35V DC operating voltage with optional AC power supply
  • Graphical LCD with LED backlight
  • Operating temperature range of -40°C to +70°C
  • 4 Push button interface (ADD, MENU, SUB, and RESET/ESC)
  • Individually configurable low and high alarm set points per channel
  • Status LEDs for power and fault multi color status light; Amber fault LED for indicating system faults
  • Output options: Wet contact fault DC fault terminal; USB virtual COM port; RS-232 or RS-485 Modbus; Website for displaying readings, alarms, faults, and sensor information; Optional 4-20 mA out put of 8, 16, 24, 0r 32 channels
  • NEMA 4X Fiberglass non explosion proof enclosure with clear lid
  • 1 Year limited hardware warranty

*Please note we can only ship RKI products to customers within the United States

Product Type Wireless interface
Operating Voltage 12V to 35V DC or 120V AC
Current Draw 800 mA Maximum at 120V DC
Power Type Wireless power
Power Supply 3.13A (75W), 85/264V AC to 24V DC (optional)
RF Connection External N female radio frequency (RF) connector
Protection Power electromagnetic interference (EMI) filter
4-20 mA surge suppression
RS-485 and RS-232 surge suppression
Display Screen 128 x 64 Resolution graphical LCD screen
transflective (sunlight readable) with LED backlight
Interface 4 Push buttons (Menu, ADD, SUB, and RESET/ESC)
Temperature Range -40°C to +70°C
Wireless (Digital) Input Up to 255 Wireless (Digital) sensor inputs
Wireless (Analog) Output RS-232 Modbus and RS-485 Modbus, ethernet to website, and virtual COM port over USB
Product Compatibility Wireless: All AirLink gas detector head transmitters
Wired (4-20mA): M2A, S2, T2A, T3A, VOC Pro, and Air Alert
Wireless Radio Options 900 MHz radio
2.4 GHz radio
Networks 52 Networks (900 MHz radio)
78 Networks (2.4 GHz radio)
255 Addresses per network
Enclosure Materials NEMA-4X fiberglass enclosure with clear window
Wiring Hubs Supplied with two 3/4" conduit hubs on bottom of housing. Can be located on sides or top if specified when ordering.
Accessories Optional horn and/or strobe on housing (uses 1 or 2 of available relays)
Product Dimensions 10 in, L x 8 in. D x 6 in. H (Max. dimensions with attachments)
Total Weight 8.90 lbs
Product Mounting 4 Mounting feet, 6 in. W x 12-1/4 in. T (included)
maximum mounting bolt/screw size of 5/16 in. (8mm) diameter
Product Add On Hardware OI-4200 PCA, 8 Channel 4-20 mA output add on board capacity; 4 maximum per OI-9850
Hardware Warranty 1-Year limited
