Testo Sensor LD basic ultrasound detector set - 8900 0401

Testo Sensor LD basic ultrasound detector set - 8900 0401

$2,570.00

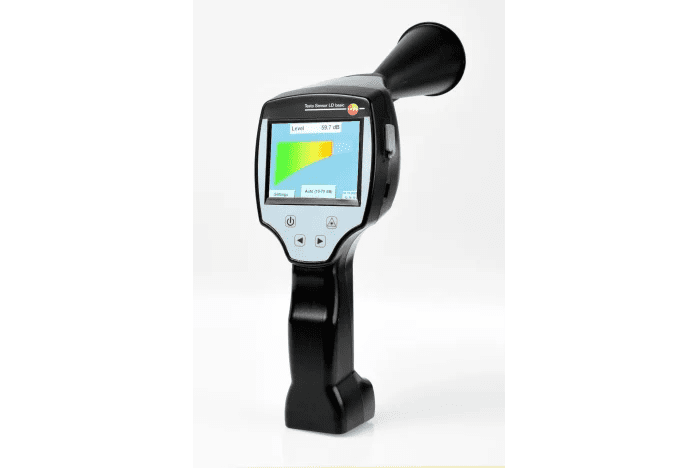

8900 0401 Sensor LD basic ultrasound detector set by Testo

Pressurized gases escaping from leaks in pipe systems (e.g. due to leaky screw connections, corrosion, etc.) cause noises in the ultrasonic range. With the testo Sensor LD basic, even the smallest leaks, which are not audible to the human ear, and due to their size are not visible, can already be localized from several metres away. The testo Sensor LD basic converts the inaudible ultrasound into audible frequencies. These sounds can be perceived even in noisy environments with the sound-proof headphones that are comfortable to wear.

The leak can be more accurately localized thanks to the integrated laser pointer which acts as a sighter. The testo Sensor LD basic leak detector is the further development of the proven predecessor model testo Sensor LD and convinces with a once again significantly refined sensor technology and improved support in detecting leaks.

  • Improved localization of leaks thanks to sound funnel
  • Robustness and a low weight ensure non-tiring use in industrial environments
  • Continuous operation for 10 hrs
  • Easy operation via touchscreen
  • Modern high-capacity Lithium ion rechargeable battery, external charger
  • Adjustable sensitivity

Delivery Scope

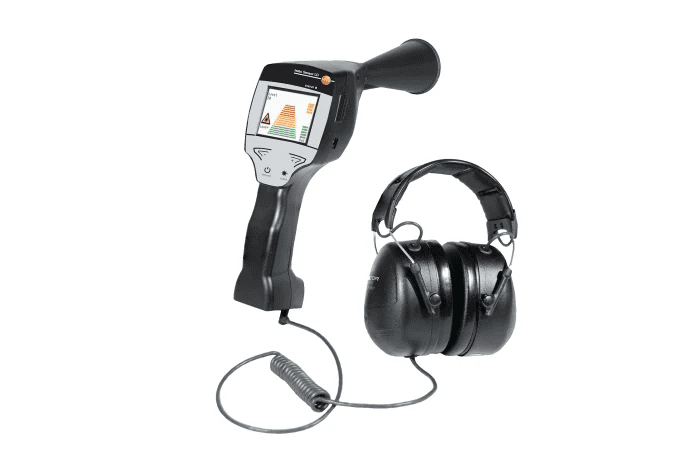

  • Leak detector with built-in Li-ion rechargeable battery
  • Sound-proof headphones
  • Directional tube with tip
  • Mains adapter
  • Sound funnel
  • Transport case
  • Instruction manual
Working frequency 40 kHz ±2 kHz
Connections - 3.5 mm jack plug for headphones, mains unit socket for connecting an external charger
- USB port
Laser Wavelength: 645 to 660 nm Output power: < 1 mW (laser class 2)
Display 3.5" TFT touch panel, transmissive
Interface USB for software update
Data loggers 2 GB SD memory card
Operating time > 10 hrs in continuous operation
Charging time Approx. 4 hrs (internal Li-ion rechargeable batteries)
Operating temperature -5 to +50 °C
Storage temperature -20 to +60 °C
Standard Meets the requirements for class 1 instruments of the "Standard Test Method for Leaks Using Ultrasonics" standard (ASTM Int. - E1002-05)
EMC DIN EN 61326
Auto level Automatically adjusts sensitivity to the surroundings and reliably blocks out ambient sounds
Sensitivity Min.: 0.1 l/min at 6 bar, 5 m distance, approx. 1 EUR/year compressed air costs
Permitted degree of contamination 2
Protection class IP20
