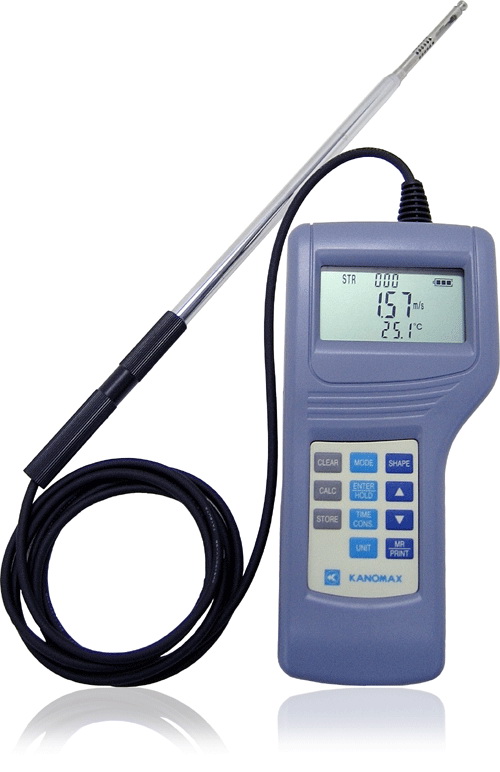

Kanomax A044 Multi-function Hot-wire Anemomaster (VTP L)

Item #:
A044
Brand:
Kanomax
Kanomax A044 Multi-function Hot-wire Anemomaster (VTP L)
Add to cart to see price
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Kanomax A044 Multi-function Hot-wire Anemomaster (VTP L)

Kanomax A044 Multi-function Hot-wire Anemomaster (VTP L)

Add to cart to see price

Discontinued


A044 Multi-function Hot-wire Anemomaster (VTP L) by Kanomax

Features:

  • Single Probe capable of measuring air velocity and temperature simultaneously
  • Straight and Articulating probe available
  • Built-i memory allows to store measurment data
  • Standard RS-232C output and Analog output option

Benefits:

  • Data can be reviewed on Screen, Printed, or Downloaded to PC
  • Articulating Probe for various applications
  • Easy Duct Traverse Measurements with etched length marks on the Telescopic Probe
  • Built in RS-232C port allows connection for external data processing

Applications:

  • HVAC Ventilation and Balancing
  • Manufacturing Control
  • Laboratory Control
  • IAQ Investigation
  • Industrial Hygiene Quality Control
  • Flow Hood Monitoring
Model
A031
A034
A041
A044
Probe (Telescopic)
Straight
Articulating
Straight
Articulating
Air Velocity Range
20 to 6000 FPM (0.10 to 30.0 m/s)
Accuracy
r2.0% of Reading or r0.015 m/s, whichever is greater
Resolution
1 FPM or 0.01 m/s
Volumetric Flowrate
9,031 ft /min at 20 FPM (2,341 m /s at 0.1 m/s)
2,709,360 ft /min at 6,000 FPM (702,270 m /s at 30 m/s)
Temperature Range
-4 to 140 F (-20 to 60°C)
Accuracy
±1F (±0.5°C)
Resolution
0.1 F or 0.1°C
Differential Pressure Range
-
-5.00 to +500kPa
Accuracy
-
±3% of reading or ±0.01 kPa
Resolution
-
0.01 kPa
Output Output
RS 232C (Baud Rate: 4800, 9600, 19200, and 38400 bps)
Analog
DC 0 - 3 V (Select from Air Velocity, Air Temperature, and Pressure)
Power Supply
6 x 1.5 V AA Batteries
AC Adapter: AC 90 - 240V
Dimensions Instrument
W 3.2 x D 1.5 x H 6.5 inches (8.2 x 3.8 x 16.5 cm)
Probe
Length: Max 39.4 inch (100 cm) / Diameter of Tip: 0.24 inch (6.0 mm)
Diameter of Base: 0.47 inch (12.0 mm) / Articulating section length: 3.94 inch (100.0 mm)
Standard Accessories
Operation Manual, Carrying Case, 6 x AA Batteries, RS-232C Cable, Software (for Windows)
Optional Accessories
Analog Output, Portable Printer, AC Adapter for Printer, Rolled Printer Paper

Datasheets & User Manuals

Questions & Answers


There are no questions or answers for this item.
