Description

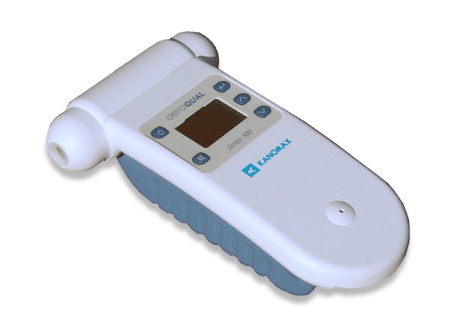

S300 Monitor with NiMH Battery (Sensor is not included) by Kanomax

Providing high level of functionality and monitoring capability, the Aeroqual Series can be used portably or fixed in position. The monitor is compatible with the full range of Aeroqual gas sensors. The remote sensor head adaptor kit is designed to allow the sensor head to be located up to 46 ft away from the main unit.

Applications :

IAQ Investigation
Industrial Hygiene Quality Control
Occupational Safety and Health Testing
US GBC LEED certification

Features :

Interchangeable sensor heads capable of measuring more than 20 types of toxic gases
Remote sensor capability
Alarm and Analog output available

Specifications

Monitor Base Specification

Measurement units	ppm or mg/m³
Sensor Head	Removable and Replaceable
Functions	On-board alarm Alarm status displayed Alarm mute function Low battery indication Sensor condition status Stand-by mode Remote sensor capability
Alarm output	Transistor output, 150 mA max Low alarm, High alarm & Control
Analog output	0 to 5 V
Power Supply	Battery or 12VDC, 800mA
Battery Type	Rechargeable battery pack Ni-MH: 9.6V, 2100mA/hr, 5 hrs operation
Enclosure Rating	IP20 & NEMA 1 equivalent
Dimensions (with sensor head)	7.0 x 4.75 x 2.0 inches (195 x 122 x 54 mm)
Weight (with sensor & battery)	< 16 oz (460 g)
Approvals	Part 15 of FCC Rules EN 50082-1: 1997 EN 50081-1: 1992

Sensor Specifications:

Gas Sensor Heads	Range (ppm)	Accuracy	Resolution
Ammonia	0 - 100	± 5 ppm	0.1 ppm
Ammonia (leak)	0 - 1000	± 15%	1 ppm
Carbon monoxide	0 - 100	±5 ppm	0.1 ppm
Carbon monoxide	0 - 1000	±10%	1 ppm
Carbon dioxide	0 - 2000	±40 ppm + 3%	10 ppm
Carbon dioxide	0 - 5000	±150 ppm + 5%	10 ppm
Formaldehyde	0 - 10	±10%	0.01 ppm
Hydrogen	0 - 5000	±10 %	1 ppm
Hydrogen sulphide	0 - 10	±0.5 ppm	0.01 ppm
Methane	0 - 9999	±15 %	1 ppm
Ozone	0 - 0.150	±0.005 ppm	0.001 ppm
Ozone	0 - 0.500	±0.008 ppm	0.001 ppm
Nitrogen dioxide	0 - 1	±0.001 ppm	0.001 ppm
NMHC 3,4	0 - 25	±10 %	0.1 ppm
Perchloroethylene	0 - 200	±5 ppm	1 ppm
Sulphur dioxide	0 - 10	±0.5 ppm	0.01 ppm
VOC	0 - 25	±10 %	0.1 ppm
VOC	0 - 500	±10 %	1 ppm
Temperature	-40 - 124°C	-	-
Relative Humidity	0 - 100%RH	-	-

Multi-Gas Sensor Head Specifications:

Multi-Gas Sensor Heads	Sensor	Range (ppm)	Accuracy	Resolution
MS1	CO₂ CO	0-2000 0-100	± 40 ppm + 3% ± 10%	1 ppm 0.1 ppm
MS2	CO₂ CO VOC (PID)	0-2000 0-100 0-25	± 40 ppm + 3% ±10% ± 10%	1 ppm 0.1 ppm 0.01 ppm
