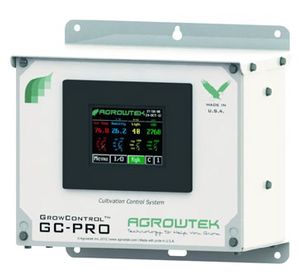

GrowControl™ GC-Pro

GrowControl™ GC-Pro Control System by Agrowtek

Features

• (12) 24Vdc Outputs (expandable up to 20 internal, 44 with XO system)
• (2) Analog sensor ports (expandable up to 4)
• (4) 24Vdc Discrete Inputs (for switch sensors)
• Multi-Zone capable; control 1-4 environments
• AgrowTouchTM screen with alarms & trending optional
• Serial port standard; Ethernet port optional
• Security levels with password protection
• Heavy duty powder-coated sheet-metal enclosures
• 3-Year full factory warranty - Made in USA

GC-Pro Standard Controls

• (3) Lighting Zones, Hot Fire Prevention w/ separate Day/Night Outputs
• (1) Light Flip Box Control
• (8) Multi-Use Thermostats
• (8) Multi-Use Humidistats
• (2) CO2 Injection w/Boost Timer & Ventilation
• (8) 24-Hour Timers, (8) Standard Cycle-Timers (secs, mins or hrs), (4) 24-Hour Scheduled Cycle Timers, (4) Off-Delay Timers, (4) 24-Hr Cancel Timers, (4) Re-Start Delay Timers, (4) Hour Meters
• (4) 16-Stage Irrigation Valve & Pump Timer Controls
• (2) Nutrient Dosing Zones, 8 stages w/Batch Dosing and 16-week Recipe Scheduler
• (2) Automatic Reservoir Drain & Fill Controls
• (2) pH Dosing Zones with (1) up and (1) down stage each
• Outdoor Weather Station Monitoring & Control
• High & Low Alarms & Limits, High Temp Lighting Shut-Off

GC-Pro-C Greenhouse Model

• (4) Lighting Zones
• (8) Vent/Shade/Curtain (VSC) Proportional Controls
• (4) Zones Multi-Stage Temperature & Humidity Control (6 stages of cooling, 2 stages of heating, humidify & dehumidify per zone)

Fee PC Software

• Local or Remote Internet Access
• Full Control of all Features (same as touch screen)
• Password Protected with Login Records
• Graphical Trending; Zoom, Save & Print
• Unlimited Data Logging to .CSV
• Camera Integration & Image Capturing
• E-Mail Alerts for Alarms
• Easy to Use
• Frequently Updated

GrowControl™ GC-Pro Climate & Hydroponics Controller by Agrowtek

Features

• (12) 24Vdc Outputs (expandable up to 20 internal, 44 with XO system)
• (2) Analog sensor ports (expandable up to 4)
• (4) 24Vdc Discrete Inputs (for switch sensors)
• Multi-Zone capable; control 1-4 environments
• AgrowTouchTM screen with alarms & trending optional
• Serial port standard; Ethernet port optional
• Security levels with password protection
• Heavy duty powder-coated sheet-metal enclosures
• 3-Year full factory warranty - Made in USA

GC-Pro Standard Controls

• (3) Lighting Zones, Hot Fire Prevention w/ separate Day/Night Outputs
• (1) Light Flip Box Control
• (8) Multi-Use Thermostats
• (8) Multi-Use Humidistats
• (2) CO2 Injection w/Boost Timer & Ventilation
• (8) 24-Hour Timers, (8) Standard Cycle-Timers (secs, mins or hrs), (4) 24-Hour Scheduled Cycle Timers, (4) Off-Delay Timers, (4) 24-Hr Cancel Timers, (4) Re-Start Delay Timers, (4) Hour Meters
• (4) 16-Stage Irrigation Valve & Pump Timer Controls
• (2) Nutrient Dosing Zones, 8 stages w/Batch Dosing and 16-week Recipe Scheduler
• (2) Automatic Reservoir Drain & Fill Controls
• (2) pH Dosing Zones with (1) up and (1) down stage each
• Outdoor Weather Station Monitoring & Control
• High & Low Alarms & Limits, High Temp Lighting Shut-Off

GC-Pro-C Greenhouse Model

• (4) Lighting Zones
• (8) Vent/Shade/Curtain (VSC) Proportional Controls
• (4) Zones Multi-Stage Temperature & Humidity Control (6 stages of cooling, 2 stages of heating, humidify & dehumidify per zone)

Fee PC Software

• Local or Remote Internet Access
• Full Control of all Features (same as touch screen)
• Password Protected with Login Records
• Graphical Trending; Zoom, Save & Print
• Unlimited Data Logging to .CSV
• Camera Integration & Image Capturing
• E-Mail Alerts for Alarms
• Easy to Use
• Frequently Updated

GrowControl™ GC-Pro-C Greenhouse Controller by Agrowtek

Features

• (12) 24Vdc Outputs (expandable up to 20 internal, 44 with XO system)
• (2) Analog sensor ports (expandable up to 4)
• (4) 24Vdc Discrete Inputs (for switch sensors)
• Multi-Zone capable; control 1-4 environments
• AgrowTouchTM screen with alarms & trending optional
• Serial port standard; Ethernet port optional
• Security levels with password protection
• Heavy duty powder-coated sheet-metal enclosures
• 3-Year full factory warranty - Made in USA

GC-Pro Standard Controls

• (3) Lighting Zones, Hot Fire Prevention w/ separate Day/Night Outputs
• (1) Light Flip Box Control
• (8) Multi-Use Thermostats
• (8) Multi-Use Humidistats
• (2) CO2 Injection w/Boost Timer & Ventilation
• (8) 24-Hour Timers, (8) Standard Cycle-Timers (secs, mins or hrs), (4) 24-Hour Scheduled Cycle Timers, (4) Off-Delay Timers, (4) 24-Hr Cancel Timers, (4) Re-Start Delay Timers, (4) Hour Meters
• (4) 16-Stage Irrigation Valve & Pump Timer Controls
• (2) Nutrient Dosing Zones, 8 stages w/Batch Dosing and 16-week Recipe Scheduler
• (2) Automatic Reservoir Drain & Fill Controls
• (2) pH Dosing Zones with (1) up and (1) down stage each
• Outdoor Weather Station Monitoring & Control
• High & Low Alarms & Limits, High Temp Lighting Shut-Off

GC-Pro-C Greenhouse Model

• (4) Lighting Zones
• (8) Vent/Shade/Curtain (VSC) Proportional Controls
• (4) Zones Multi-Stage Temperature & Humidity Control (6 stages of cooling, 2 stages of heating, humidify & dehumidify per zone)

Fee PC Software

• Local or Remote Internet Access
• Full Control of all Features (same as touch screen)
• Password Protected with Login Records
• Graphical Trending; Zoom, Save & Print
• Unlimited Data Logging to .CSV
• Camera Integration & Image Capturing
• E-Mail Alerts for Alarms
• Easy to Use
• Frequently Updated

GrowControl™ GC-Pro-Q Quad Climate Controller by Agrowtek

Features

• (12) 24Vdc Outputs (expandable up to 20 internal, 44 with XO system)
• (2) Analog sensor ports (expandable up to 4)
• (4) 24Vdc Discrete Inputs (for switch sensors)
• Multi-Zone capable; control 1-4 environments
• AgrowTouchTM screen with alarms & trending optional
• Serial port standard; Ethernet port optional
• Security levels with password protection
• Heavy duty powder-coated sheet-metal enclosures
• 3-Year full factory warranty - Made in USA

GC-Pro Standard Controls

• (3) Lighting Zones, Hot Fire Prevention w/ separate Day/Night Outputs
• (1) Light Flip Box Control
• (8) Multi-Use Thermostats
• (8) Multi-Use Humidistats
• (2) CO2 Injection w/Boost Timer & Ventilation
• (8) 24-Hour Timers, (8) Standard Cycle-Timers (secs, mins or hrs), (4) 24-Hour Scheduled Cycle Timers, (4) Off-Delay Timers, (4) 24-Hr Cancel Timers, (4) Re-Start Delay Timers, (4) Hour Meters
• (4) 16-Stage Irrigation Valve & Pump Timer Controls
• (2) Nutrient Dosing Zones, 8 stages w/Batch Dosing and 16-week Recipe Scheduler
• (2) Automatic Reservoir Drain & Fill Controls
• (2) pH Dosing Zones with (1) up and (1) down stage each
• Outdoor Weather Station Monitoring & Control
• High & Low Alarms & Limits, High Temp Lighting Shut-Off

GC-Pro-C Greenhouse Model

• (4) Lighting Zones
• (8) Vent/Shade/Curtain (VSC) Proportional Controls
• (4) Zones Multi-Stage Temperature & Humidity Control (6 stages of cooling, 2 stages of heating, humidify & dehumidify per zone)

Fee PC Software

• Local or Remote Internet Access
• Full Control of all Features (same as touch screen)
• Password Protected with Login Records
• Graphical Trending; Zoom, Save & Print
• Unlimited Data Logging to .CSV
• Camera Integration & Image Capturing
• E-Mail Alerts for Alarms
• Easy to Use
• Frequently Updated

AgrowTouch™ Color Touch Screen for GC-Pro by Agrowtek

AgrowTouch 3.5" color touch screen interface for the GrowControlTM GC-Pro and GC-Plus climate controllers. These industrial grade touch screens are lighting fast and offer the ultimate in convenience for monitoring and managing your controller.

Get instant access to all controller functions including:

• Manual overrides for all outputs and inputs
• Manually turn system on or off
• Full control of all settings
• Visual trend graph for all sensor readings
• Alarm history for the last 10 alarms

Also includes:

• Administrator and user lock-out and password protection
• Screen saver which turns off back light after 30 minutes

Specifications

• 4" Display
• 256 Colors
• For GC-Pro or GC-Plus
• 1 Year Warranty, Made in USA

Ethernet Port by Agrowtek

An Ethernet port is optional providing the capability to connect the controller directly to an Ethernet network for access and control via remote internet connections. A serial port is included on all systems for direction connection to a PC.

XD 8-Output Expansion Module

XA 2-Port Analog Sensor Expansion Module
