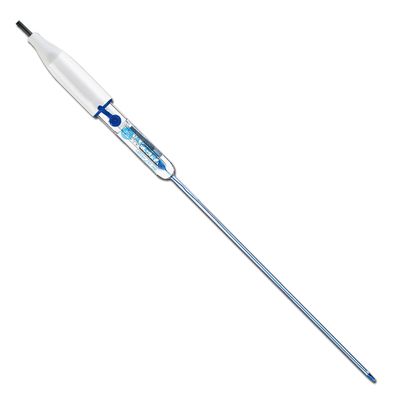

Apera LabSen 241-180 Glass-body pH Electrode for NMR Tubes (3mm diameter, 180mm length) - AI3161

Item #:
AI3161
Brand:
Apera Instruments
Apera LabSen 241-180 Glass-body pH Electrode for NMR Tubes (3mm diameter, 180mm length) - AI3161
$295.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Apera LabSen 241-180 Glass-body pH Electrode for NMR Tubes (3mm diameter, 180mm length) - AI3161

Apera LabSen 241-180 Glass-body pH Electrode for NMR Tubes (3mm diameter, 180mm length) - AI3161

$295.00

AI3161 LabSen 241-180 Glass-body pH Electrode for NMR Tubes (3mm diameter, 180mm length) by Apera

Built with proprietary sensor technology and premium materials from Switzerland, Apera LabSen 241-180 Glass Micro pH Electrode is designed for micro-volume samples in slim containers such as NMR tubes (minimum sample volume: 50 microliters).

LabSen Glass Membrane - LabSen 241-180 pH electrode adopts an ultra-long 180mm micro cylindrical glass membrane (ø3mm), making NMR tube pH measurement easier than ever. And it can be tested at high-temperature up to 212°F. The low-resistance membrane (<450MΩ) helps you quickly get a fully stabilized reading.

Long-Life Reference System - composed of a glass tube, AgCl, and a reference silver wire. The top end of the slim glass tube is stuffed with cotton, which prevents the reaction between AgCl and electrolyte when the temperature changes. It improves the stability of the reference system and extends the electrode's service life.

The electrode uses a standard BNC connector, compatible with any pH meters that use BNC connectors. No temperature sensor is built-in. Users need to have a separate temperature probe (ex: Apera Instruments MP500) to enable ATC or manually input temperature to achieve temperature compensation.

  • Proprietary pH sensor technology and premium materials from Switzerland
  • Low-resistance LabSen® 180mm*&oslah;3mm micro cylindrical glass membrane, ideal for NMR tubes and other slim containers (minimum sample volume: 50 microliters)
  • Long-Life Reference System, improving the stability of the reference and extends the electrode's service life
Material Lead-free glass
Temp. Sensor No
Junction Ceramic
Reference Long-Life
Electrolyte 3M KCL
Length 180mm
Diameter 3mm
Membrane Shape Cylindrical
Membrane Resistance <450MΩ
Range 0 to 14 pH
Temp. Range 0 to 100 °C (32 to 212 °F)
Connector BNC
Cable 3 Ft
