SE International AM-PA Radiation Area Monitor (Internal GM NO BUZZER Replaces PRIME ALERT) (0.1 to 16,000 mR/hr - 0.1 to 160,000 µSv/hr) - AM-7149-PA

Item #:
AM-7149-PA
Brand:
SE International
SE International AM-PA Radiation Area Monitor (Internal GM NO BUZZER Replaces PRIME ALERT) (0.1 to 16,000 mR/hr - 0.1 to 160,000 µSv/hr) - AM-7149-PA
$2,320.00
Qty
Ask a Question
Send This Page to a Friend
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services
  • JJS Technical Services

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
SE International AM-PA Radiation Area Monitor (Internal GM NO BUZZER Replaces PRIME ALERT) (0.1 to 16,000 mR/hr - 0.1 to 160,000 µSv/hr) - AM-7149-PA

SE International AM-PA Radiation Area Monitor (Internal GM NO BUZZER Replaces PRIME ALERT) (0.1 to 16,000 mR/hr - 0.1 to 160,000...

$2,320.00

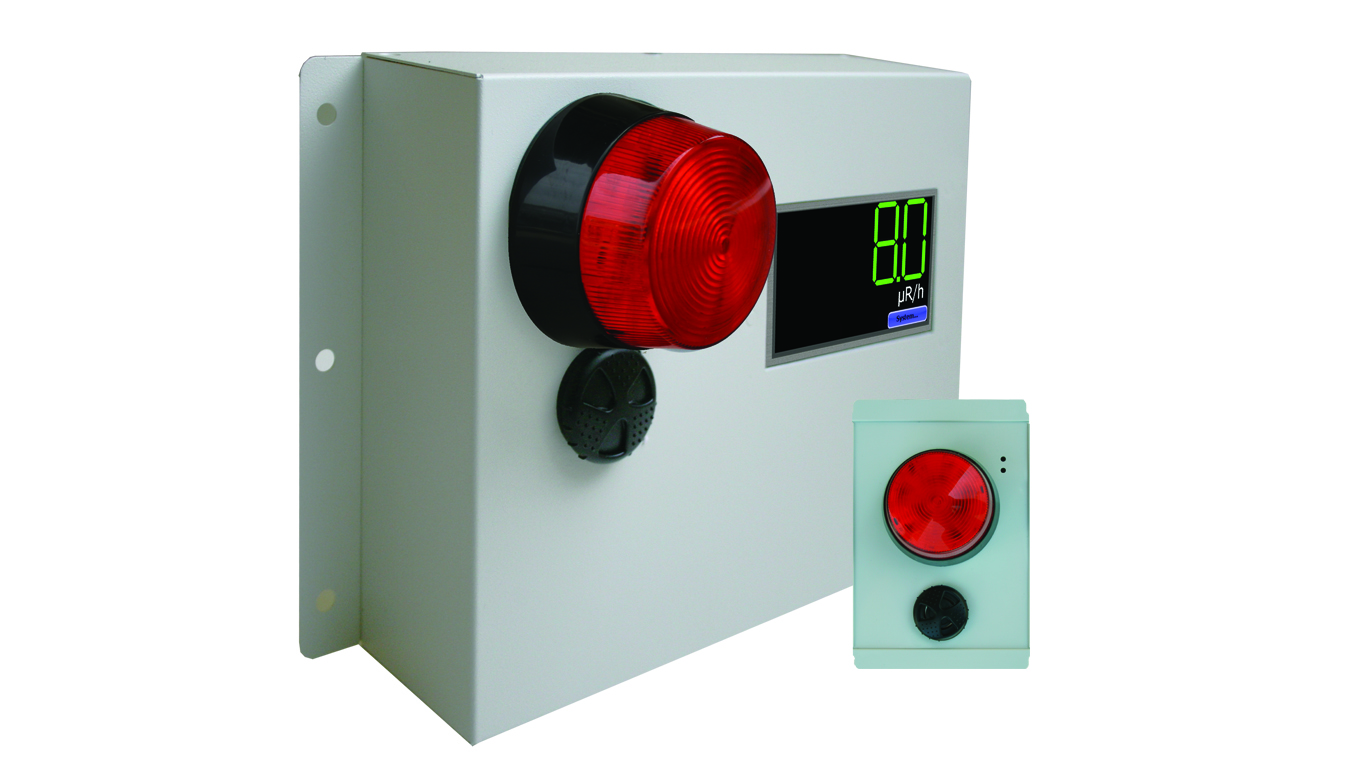

AM-7149-PA AM-PA Radiation Area Monitor (Internal GM NO BUZZER Replaces PRIME ALERT) (0.1 to 16,000 mR/hr - 0.1 to 160,000 μSv/hr) by SE International

The Radiation Alert® Area Monitor is one of the most user friendly, all inclusive, state of the art radiation area monitors available. The easy to use interface is an intelligent resistive touch screen display featuring a large five digit LED readout.

It comes with an internal detector and free software for monitoring every Radiation Alert® Area Monitor on your network. Includes user selectable warning indicators for low and high radiation alarm levels, and detector failure. Setup email and text alerts to receive alarms while on the go. All the settings are stored internally, even when power is disconnected. All units come with a Certificate of Conformance. NIST Source calibrations available upon request.

Detector LND 7149 Energy Compensated GM Detector Custom Probe Options Available. Tell us about your application and we can recommend the best probe options for your needs.
Sensitivity 1.5 cps/mR/hr
Operating Range 0.01 to 16,000 mR/hr (0.1 to 160,000 μSv/hr)
Linearity NIST Calibrated readings within 10% of true value with detector connected.
*ALL NIST CALIBRATIONS ARE ONLY RATED to 0.1 to 1,000 mR/hr - (0.1 to 10,000 μSv/hr) However, the instrument will work to the stated operation range above.
Touch Screen Display 4.3 inch TFT 480×272 touch screen display with user friendly Programmable Units of Measurement and Audio and Visual Alarms. 5-digit LED display with 1.5 cm (.59 in.) character height. 65K true colors capable of displaying full color images, animations, icons.
Base Units Can display in µR/hr, mR/hr, µSv/hr, mSv/hr, CPM, KCPM, CPS, KCPS
Instrument Settings Settings for Base Units, Alarms and Calibration Information can be accessed through the Touch Screen Display or through the software.
Indicators Ultra-Bright Strobe Can trigger up to three relays with DB-9 serial connection, USB VCP for computer data logging, can also be used to control the unit with use of remote software for alarm indication and acknowledgment (Silence by remote)
Audio Main Unit- Sound turned off for monitoring sensitive areas. Sound can be turned on if desired. Remote Alarm- Audible Alarm is off.
Alarm Sound 92 +/- 5 db(A) at 5VDC at 24” (61 cm). at 25° C
103 +/- 5 db(A) at 15VDC at 24” (61 cm). at 25° C
High Voltage User adjustable from 200 to 1200 volts
Power 12 VDC wall mount adapter included.
Battery Life Typically 6 hours in non-alarm condition; 5 hours in alarm condition
Battery Charger SLA Battery is continuously trickle charged when the instrument is connected to line power and turned on
Temperature Range -10° to +50°C (14° to 122°F)
Humidity 10% to 70% Non-Condensing.
Size Base Unit 20.3 x 28.6 x 10.8 cm (8 x 11.25 x 4.25 in.) Remote alarm- 12.03 x 22.07 x 10.94 cm (4.7 x 8.69 x 4.31 in)
Construction Easy mount steel enclosure
Includes Management software for use with networked area monitors, Base Unit, Power Supply, Remote Alarm with cable
Options NIST Calibration
Limited Warranty 1 year limited warranty
