Agrowtek LX2 ModLINK
Agrowtek LX2 ModLINKAgrowtek LX2 ModLINKAgrowtek LX2 ModLINKAgrowtek LX2 ModLINK

Agrowtek LX2 ModLINK

Item #
AT-LX2
Brand
Agrowtek
Price:

$79.00

Quantity:

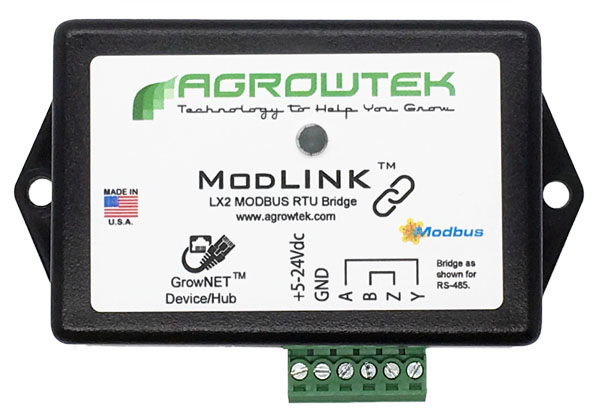

    LX2 ModLINK by Agrowtek

    LX2 ModLINK™ connects Agrowtek's intelligent sensors, peristaltic dosing pumps, and control relays equipped with a GrowNET™ RJ45 port to a standard RS-485 or RS-422 serial bus for use with the MODBUS RTU protocol. ModLINK is an MCUbuffered bridge between Agrowtek's high-speed, full duplex devices connected with RJ45 cables, to a terminal block for integration with PLC systems. HX8 device hubs can be daisy chained to the the LX2 ModLINK™ to connect as many as 247 devices using standard MODBUS addressing. LX1 USB link is required to change default serial connection settings.

    Features

    • Made in USA
    • Industrial MODBUS RTU
    • Digital Signal Buffering
    • DIN Rail Kit Available
    • 1-Year Warranty

    Power Supply 5 - 24 Vdc
    Default Connection 19,200 Baud, 8-E-2
    Programmable with LX1 9,600 - 115,200 Baud
    Message Buffer Memory 2048 Bytes
