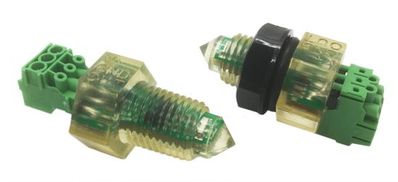

Agrowtek SXL-2X Optical Liquid Sensor, DRY-ON (Latching)

Item #:
AT-SXL-2X
Brand:
Agrowtek
$66.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Agrowtek SXL-2X Optical Liquid Sensor, DRY-ON (Latching)

Agrowtek SXL-2X Optical Liquid Sensor, DRY-ON (Latching)

$66.00

SXL-2X Optical Liquid Sensor, DRY-ON (Latching) by Agrowtek

Electronic optical liquid sensors are durable, have no moving parts and are easy to maintain. SXL sensors can detect fluid levels in tanks, flow in pipes, or leaks in drip pans when liquid touches the sensor tip. Wide voltage range and high current capacity makes the SXL sensor practical for TTL logic, industrial PLC or direct relay control applications. 1/4" NPT threading and removable wiring terminal block with pin-out cast into the hex head makes installation or replacement fast and simple. When the output is energized a red LED illuminates the sensor body giving a visual status indication. Available in 'wet-on' and 'dry-on' configurations, or PWM output for applications requiring error indication and failure monitoring. Other intelligent functions include "stable state" switching to detect splashing, one-second output debounce and error indication from infrared flooding.

Applications

  • Water Tanks
  • Coolant Reservoirs
  • Hydraulic Fluid Reservoirs
  • Warewash Equipment
  • Irrigation Systems
  • High & Low Level Detection
  • Leak & Overflow Detection
  • Flow Detection in Pipes
  • Automatic Fill/Drain Level Control
Voltage Input 5-24Vdc
Output Current Max 1A (sourcing)
Current Consumption 20mA
Mounting Thread 1/4" NPT
Hex Size 3/4" (19mm)
Body Material Polysulphone
Temperature Range -20 to 80°C (non-freezing)
Maximum Pressure TBD
Wire Gauge 26 - 16 AWG
