MS-H-Pro+ Series Digital Magnetic Hotplate Stirrer

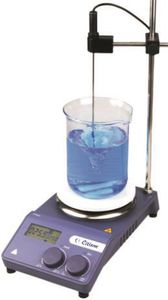

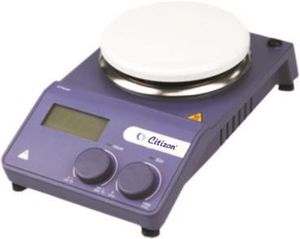

MS-H-Pro+ Digital Magnetic Hotplate Stirrer by Citizen Scale

PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up to 340°C. Stainless steel with ceramic coated hotplate resists to corrosion, also with good uniformity of heating, The hotplate models are suitable for external temperature sensor medium temperature.

Application

340°C magnetic hotplate stirrers are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals and other fields.

Features

• External temperature sensor PT1000 is available for hotplate model, real-time controls medium temperature.
• Simple running interface easy to use and program. Automatically identify temperature sensor PT1000 and transfer to PT1000 operation mode. Record and display the last running parameter when switch on.
• LCD display target and actual temperature, as well as set and actual speed can be displayed.
• PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy.
• Brushless DC motor maintenance free and explosion-prooted, accurately control speed.
• Fully closed assembly guarantees safety and long service life, effectively prevents the liquid into unit to protect the components from damage.
• Separate safety circuits, fixed safety temperature of 360ºC, Automatically stops heating once exceed secure temperature.
• HOT warning indicates residual hotplate temperature. LCD display would show 'Hot' when hotplate temperature over 50°C warning point, even if switched off.
• Free software Stir PC, computer can control and document all operation values via Rs232 interface.
