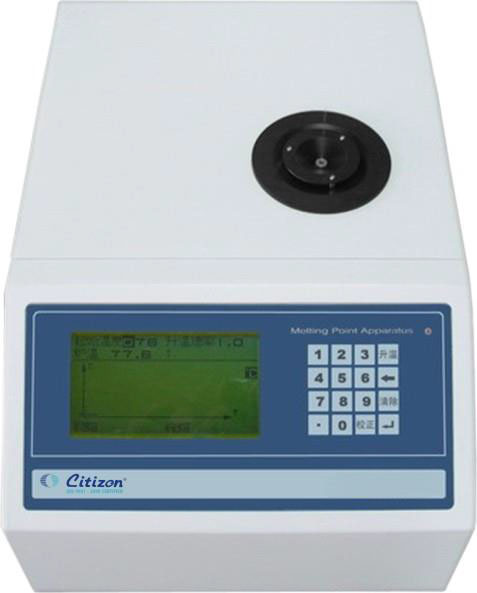

CMP-2A Melting-Point Apparatus by Citizen Scale

This CMP 2A melting point apparatus is an automatic, uncomplicated, and accurate process for determining a sample's melting point. The starting temperature and heating rate are selected with a touch of the function keys. Simply place 1-3mg into disposable sample tube and insert into instrument; the rest is automatic. When the melting point is achieved, a visual and audible signal is given and the temperature is displayed. The CMP 2A makes use of the optical behavior of substances to detect their melting point, i.e., it measures the reflection of incident light in the crystalline state and the increase in light transmittance while heating. RS-232C interface capability allows connection to the GA42 printer for GLP applications.

Features:

  • Measurement of melting point is one of the important methods of measurement of purity.
  • To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
  • Photoelectric test
  • LCD display, entry by digital keyboard and direct display of melting curve.
  • CMP-2A can measure three samples at the same time and calculate average value of initial and final melting points automatically.
  • RS 232

Application:

Melting Point Apparatus measures the melting point of a substance i.e. the temperature at which the state of the substance changes from solid to liquid. The actual melting point is an indication of the purity of a substance and hence an ideal tool for the quality control of medicines, perfumes, dyestuff and other organic crystalline substances.

Model CMP-2A
Melting point measurement range Room temperature – 300°C
Minimum Digital Display 0.1°C
Linear Heating-up rate 0.2, 0.5, 1.0, 1.5, 2, 3, 4, 5°C/min
Accuracy <200°C : ±0.5°C; 200 - 300°C: ±0.8°C
Weight (Gross) 11 kg
Overall Dimensions (mm) 510 x 380 x 360
