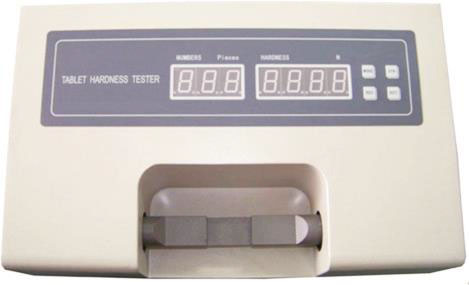

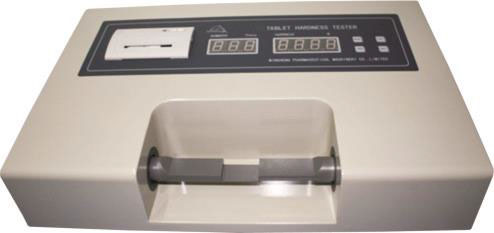

Citizen Scale CTH Tablet Hardness Tester

CTH Tablet Hardness Tester by Citizen Scale

The tablet is placed on the platform between two precision ground platen jaws, one of which is attached to the load cell and the other to a manual mechanical drive. During the testing, the manual jaw is driven forward by turning the knob which gives a gently movement and presses the tablet against the fixed jaw. The process continues until the tablet is fractured and the breaking point is registered by the instrument.

Digital Portable Tablet

Hardness Tester CTH Series are a Portable Instrument which can measure the Breaking Point of Tablets. The tester measures the Compressive Force with an Accuracy of ± 0.5% and Measures and Displays the Peak Force used to Fracture the Tablets. The Instrument also reduces unnecessary costs to produce tablets out of Specified Hardness Range.

Features:

• Hardness Measurement by LoadCell up to 500 Newtons
• Measurement in N, Kgf, Lbf
• Programmable Upper (T1) & Lower (T2) Tolerance Limits
• Bright LCD Screen Display with Backlit
• RS 232 Port Facility Available for PC and Printer Connectivity
• Operates on Rechargeable Battery
• Automated Semi-Calibration (Zero Point Adjustment)
• Display of 10 Test Values and Calculate the Average of Memorized Values
• Battery operated
• Automatic "0" reading on start up
• Sliding guard and collection tray

Application:

Tablet Hardness Tester are suited for the Pharmaceutical, Food, Detergent, Dairy, Animal Feed, Pesticides and any other industries that requires Compressed Tablets.
