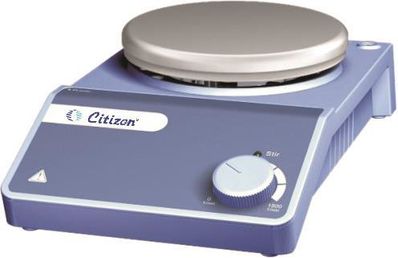

Citizen Scale MS-H-S Classic Magnetic Hotplate Stirrer

Item #:

CS-MS-H-S

Brand:

Citizen Scale

Our tech experts are ready to help!

Share this product:

MS-H-S Classic Magnetic Hotplate Stirrer by Citizen Scale

Speed range of 0-1500rpm.
Max, stirring quantity 20L.
Stainless steel with ceramic coated hotplate resists to corrosion.
Motor with electronic speed control, constant speed even during changes in load.
High magnetic adhesion, prevent the stirrer bar escape.
Enclosed assembly with protection class IP 42.
DC brushless motor guarantees long service.

Model	MS-S	MS-H-S
Dimension of work plate (mm)	Ø135 (5inch)	Ø135 (5inch)
Work plate material	Stainless steel with ceramic coated	Stainless steel with ceramic coated
Motor type	DC brushless motor	DC brushless motor
Motor rating input (W)	18	18
Motor rating output (W)	10	10
Power (W)	30	530
Voltage (VAC)	100-240	200-240
Frequency (Hz)	50/60	50/60
Stirring positions	1	1
Max. Stirring quantity (H₂O), L	20	20
Max. magnetic bar (L x Ø)mm	80	80
Speed range (rpm)	0-1500	0-1500
Speed display	Scale	Scale
Heating output (W)	-	500
Heating temperature range (°C)	-	RT-340
Safety temperature (°C)	-	350
Temperature display	-	Scale
External temperature sensor	-	N/A
Heating warning (°C)	-	N/A
Remote control (RS232 interface)	-	N/A
Protection class according to DIN En60529	IP 42	IP 42
Dimension (W x D x H)mm	160 x 280 x 85	160 x 280 x 85
Weight (kg)	2.8	2.8
Permissible ambient temperature (°C)	5-40	5-40
Permissible relative humidity	80%	80%
