Citizen Scale SGW - 1 Automatic Polarimeter

Citizen Scale SGW - 1 Automatic Polarimeter

$6,825.00

Discontinued

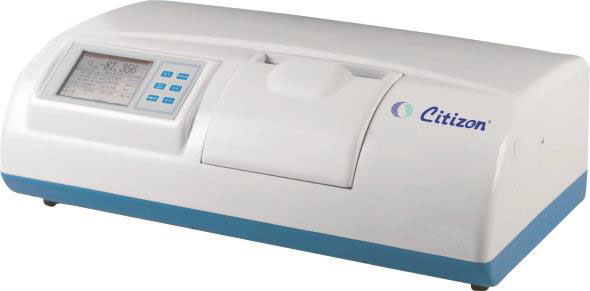

SGW - 1 Automatic Polarimeter by Citizen Scale

These polarimeters find wide application in laboratories of pharmaceutical, sugar, food, oil refining & chemical industries, universities and scientific research departments. Integrated with advanced technology, this type of instrument is used for determining the optical rotation of substances. Our offered Digital Polarimeter has been certified by reputed government institutions like Regional Testing Center.

Features:

  • Need not prewarm when turning on.
  • Measuring specific rotation, optical rotation, sugar degree and concentration.
  • Automatic repletion-measurement for 6times, and calculation of average value and means square root.
  • Peltier principle to control the temperature.
  • Measurement of dark-colored sample.
  • USB
  • The highest measuring accuracy
  • Maximum user-friendliness
  • Robust design and state-of-the-art data management
  • Modular design for the highest flexibility
  • Versatile
Model
SGW – 1
SGW – 2
Accuracy
a) ±(0.005° + measuring value x 0.03%)
b) ±(0.015°Z + measuring value x 0.03%)
a) ± 0.01° (-15° ≤ optional rotation ≤ +15°)
b) ± 0.02 (optional rotation <-15° or optional rotation >+15°)
Measurement rage
-45° ~ +45°, -120° ~ 120°Z
-45° ~ +45°
Minimum indicating value
0.001°, 0.01°Z
0.001°, 0.01°Z
Repeatability
Sample transmittance >1% ≤0.002° (≤0.006°Z)
Sample transmittance >1% ≤0.002° (≤0.006°Z)
Display
LCD
Touch Screen
Light source
LED (2.4, 1W, 5000hours)
LED
Operation Wavelength
589.3nm
589.3nm
Temperature control rage
-
18-30°C
Accuracy
-
± 0.5°C
Length of test tube
1each
1each
Constant Temperature test tube
-
1pc
Weight (Gross)
32kg
32kg
Overall Dimensions
850mm x 470mm x 380mm
850mm x 470mm x 380mm
Optional accessories
Micro test tube (50mm)
Micro test tube (50mm)
