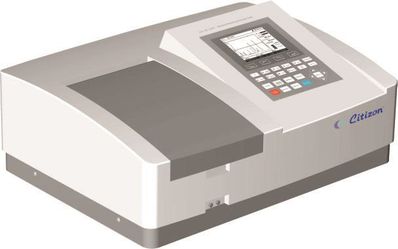

Citizen Scale UV 6100S Spectrophotometer

Item #:
CS-UV-6100S
Brand:
Citizen Scale
Citizen Scale UV 6100S Spectrophotometer
$8,655.00
Qty

Discontinued

Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Citizen Scale UV 6100S Spectrophotometer

Citizen Scale UV 6100S Spectrophotometer

$8,655.00

Discontinued


UV 6100S Spectrophotometer by Citizen Scale

UV-6 Series is an advance double beam design consisting of 3 models. UV-6100S with variable bandwidth : 0.5 / 1 / 2 / 4 / 5nm.

The two detectors measure sample and reference respectively and simultaneously for optimizing measurement accuracy.

They provide excellent performance for measurement in the range of 190 to 1100nm, the memory is 32K. They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, wavelength scan, multiple components and DNA / Protein, PC Windows application software make these instruments versatile. All instruments provide excellent performance for measurements.

Features:

  • Fixed or variable slits (Bandwidths).
  • For stand-alone models, all software methods are included as built-in standard, this eliminates the need of software.
  • Online software upgrading via internet helps to keep it updated.
  • Data Download-to-PC software expands the data storage to unlimited.
  • The stand-alone model has 5 inch screen and the PC model has UV-Vis Analyst software.
  • Data can be saved by USB memory device directly Stand-alone models of UV-6 Series have same functions as UV-3 series, see next page for details.
Model UV 6100S
Wavelength Range 190-1100nm
Spectral Bandwidth 0.5 / 1 / 2 / 4 / 5nm
Optional system Double Beam, Grating 1200 lines/mm
Wavelength Accuracy ±0.3nm
Wavelength Repeatability 0.2nm
Scan Speed Hi, MED, LOW, MAX. 3000nm/min
Photometric Accuracy ±0.3%T or ±0.003@1A
Photometric Range 0-200%T, -0.3 - 3A
Stray Light 0.04%T@220nm, 360nm
Stability 0.0003A/h @500nm
Display 5inches LCD (320 x 240 dots)
Baseline Flatness ±0.0005A
Standard Cell Holder Standard 10mm single cell holder (2pcs)
Sample Compartment Standard 10mm pathlength cuvette
Light Source Tungsten & Deuterium lamp (Pre-aligned)
Output USB Type A port for USB memory device (Right side)
USB Type B port for optional computer connectivity (Back)
Parallel port for printer
Power Requirement AC 110/220C 50/60Hz
Dimensions (L x W x H) 589 x 428 x 200 mm
Weight 22kg
