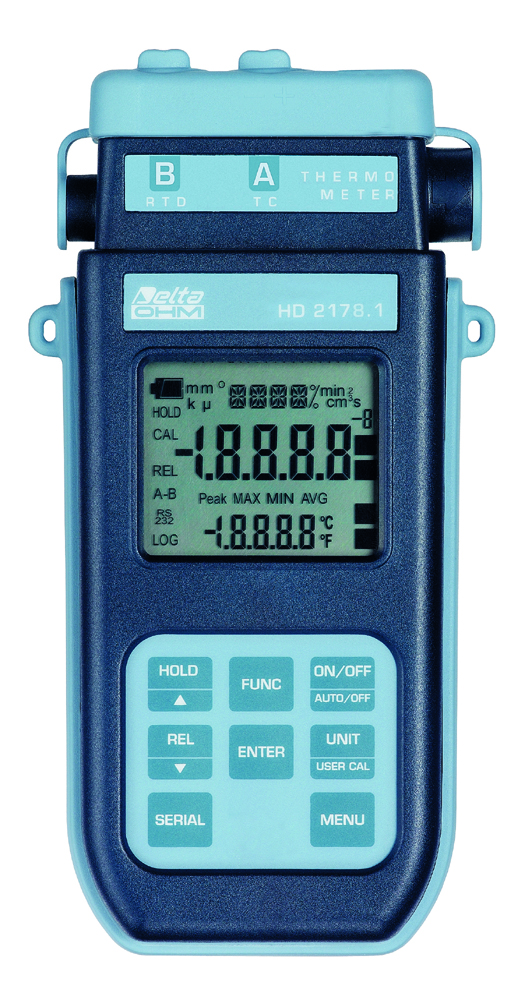

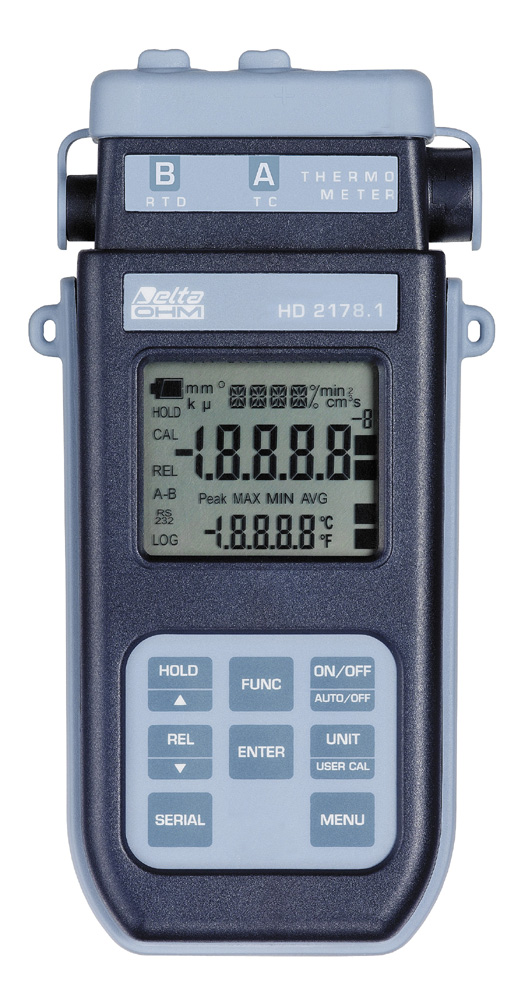

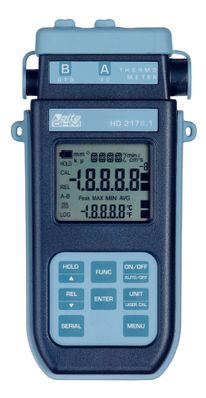

HD2178.1 Pt100 Sensor and TC Input Portable Thermometer with Large LCD Display by Delta OHM

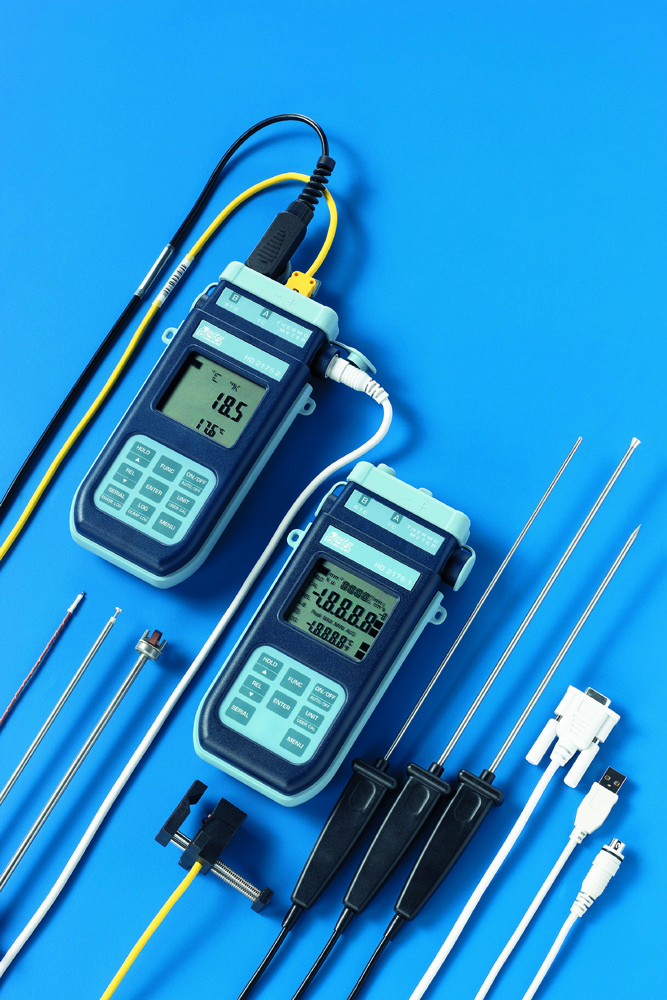

HD2178.1 and HD2178.2 are portable instruments with a large LCD display. These instruments measure temperature by means of immersion, penetration, contact or air probes with Pt100 or thermocouple probes. You can connect a 3 or 4 wires Pt100 sensor or a 2 wires Pt1000 sensor to B input, a K, J, T, N, E type thermocouple to input A. Probes to B input, a 8-poles DIN45326 connector, are equipped with an automatic detection module, with the factory calibration settings already being memorized inside. A input is equipped with a miniature female polarized connector for thermocouple probes. The instrument HD2178.2 is a data logger; it stores up to 80.000 samples that can be transferred to a PC when connected to the instrument through a RS232C serial port or a USB 2.0 port. It is possible to configure the storage interval, the printing and the baud rate by the menu. All models are equipped with RS232C serial port and are able to transfer the acquired measures, in real time, to a PC or a portable printer. Functions Max, Min and Avg calculate maximum, minimum and average values. Further functions are: REL relative measure, HOLD and automatic switching-off system, excludable.

Technical Specification of the Instrument
Instrument
Dimensions (Length x Width x Height) 185x90x40mm
Weight 470g (complete with batteries)
Materials ABS, rubber
Display 2x4½ digits plus symbols
Visible area: 52x42mm
Operating conditions
Operating temperature -5 … 50°C
Storage temperature -25 … 65°C
Working relative humidity 0 … 90% RH, no condensation
Protection degree IP66
Power supply
Batteries 4 Batteries 1.5V type AA
Autonomy 200 hours with 1800mAh alkaline batteries
Current consumption with instrument off 20μA
Unit of measurement °C - °F
Security of stored data Unlimited, independent of battery charge conditions
Time
Date and time In real time
Accuracy 1min/month max drift
Measured values storage for model HD2178.2
Type 2000 pages each one containing 40 samples
Quantity 80000 samples in total
Storage interval can be selected between 1,5,10,15,30 s.; 1,2,5,10,15,20,30 min.;1 hour
Serial interface RS232C
Type RS232C galvanically isolated
Baud rate can be set from 1200 to 38400 baud
Data bit 8
Parity None
Stop bit 1
Flow Control Xon/Xoff
Serial cable length Max 15m
Print interval Immediate or selectable between: 1,5,10,15,30 s.; 1,2,5,10,15,20,30 min.; 1 hour
USB interface - model HD2178.2
Type 1.1 - 2.0 electrically isolated
Connections
Input for RTD probes 8-pole male DIN45326 connector
Input for TC probes 2-pole female polarized standard miniature connector
RS232C serial interface 8-pole MiniDin connector
USB interface Type B MiniUSB connector
Mains adapter 2-pole connector (positive at centre)
Temperature measurement by instrument - RTD sensors
Pt100 measurement range -200…+650°C
Pt1000 measurement range -200…+650°C
Resolution 0.1°C
Accuracy ±0.05°C
Drift after 1 year 0.1°C/year
Temperature measurement by instrument - Tc
TC measuring range: K -200…+1370°C
TC measuring range: J -100…+750°C
TC measuring range: T -200…+400°C
TC measuring range: N -200…+1300°C
TC measuring range: E -200…+750°C
Resolution 0.1°C
Instrument accuracy
Thermocouple K ±0.1°C up to 600°C
±0.2°C over 600°C
Thermocouple J ±0.1°C up to 400°C
±0.2°C over 400°C
Thermocouple T ±0.1°C
Thermocouple N ±0.1°C up to 600°C
±0.2°C over 600°C
Thermocouple E ±0.1°C up to 300°C
±0.2°C over 300°C

Temperature probes Pt100 sensor with SICRAM module
Model
Type
Application field
Accuracy
TP472I
Immersion
-196°C…+500°C
±0.25°C (-196°C…+300°C)
±0.5°C (+300°C…+500°C)
TP472I.0 1/3 DIN Thin Film
Immersion
-50°C…+300°C
±0.25°C (-50°C…+300°C)
TP473P.I
Penetration
-50°C…+400°C
±0.25°C (-50°C…+300°C)
±0.5°C (+300°C…+400°C)
TP473P.0 1/3 DIN Thin Film
Penetration
-50°C…+300°C
±0.25°C (-50°C…+300°C)
TP474C.I
Contact
-50°C…+400°C
±0.3°C (-50°C…+300°C)
±0.5°C (+300°C…+400°C)
TP474C.0 1/3 DIN Thin Film
Contact
-50°C…+300°C
±0.3°C (-50°C…+300°C)
TP475A.0 1/3 DIN Thin Film
Air
-50°C…+250°C
±0.3°C (-50°C…+250°C)
TP472I.5
Penetration
-50°C…+400°C
±0.3°C (-50°C…+300°C)
±0.6°C (+300°C…+400°C)
TP472I.10
Penetration
-50°C…+400°C
±0.30°C (-50°C…+300°C)
±0.6°C (+300°C…+400°C)
TP49A.0 Class A Thin Film
Immersion
-70°C…+250°C
±0.3°C (-70°C…-50°C)
±0.25°C (-50°C…+250°C)
TP49AC.0 Class A Thin Film
Contact
-70°C…+250°C
±0.3°C (-70°C…-50°C)
±0.25°C (-50°C…+250°C)
TP49AP.0 Class A Thin Film
Penetration
-70°C…+250°C
±0.3°C (-70°C…-50°C)
±0.25°C (-50°C…+250°C)
TP875.I
Globe-thermometer Ø150mm
-30°C…+120°C
±0.25°C
TP876.I
Globe-thermometer Ø50mm
-30°C…+120°C
±0.25°C
TP87.0 1/3 DIN Thin Film
Immersion
-50°C…+200°C
±0.25°C
TP878.0 1/3 DIN Thin Film
TP878.1.0 1/3 DIN Thin Film
Photovoltaic
+4°C…+85°C
±0.25°C
TP879.0 1/3 DIN Thin Film
Compost
-20°C…+120°C
±0.25°C

4 wires Pt100 and 2 wires Pt1000 Probes
Model
Type
Application field
Accuracy
TP47.100.0 1/3 DIN Thin Film
4 wires Pt100
-50…+250°C
1/3 DIN
TP47.1000.0 1/3 DIN Thin Film
2 wires Pt1000
-50…+250°C
1/3 DIN
TP87.100.0 1/3 DIN Thin Film
4 wires Pt100
-50…+200°C
1/3 DIN
TP87.1000.0 1/3 DIN Thin Film
2 wires Pt1000
-50…+200°C
1/3 DIN

Tolerance classes for thermocouples (reference junction at 0°C)
Type of thermocouple
Tolerance Class 1
Tolerance Class 2
Tolerance Class 3
Type T
from -40 to +125°C ± 0.5°C
from 125 to 350°C ± 0.004 · t
from -40 to +133°C ± 1°C
from 133 to 350°C ± 0.0075 · t
from -67 to+40°C ± 1°C
from -200 to -67°C ± 0.015 · t
Type E
from -40 to +375°C ± 1.5°C
from 375 to 800°C ± 0.004 · t
from -40 to +333°C ± 2.5°C
from 333 to 900°C ± 0.0075 · t
from -167 to +40°C ± 2.5°C
from -200 to -167°C ± 0.015 · t
Type J
from -40 to +375°C ± 1.5°C
from 375 to 750°C ± 0.004 · t
from -40 to +333°C ± 2.5°C
from 333 to 750°C ± 0.0075 · t
-
Type K
from -40 to +375°C ± 1.5°C
from 375 to 1000°C ± 0.004 · t
from 40 to +333°C ± 2.5°C
from 333 to 1200°C ± 0.0075 · t
from -167 to+40°C ± 2.5°C
from -200 to -167°C ± 0.015 · t
