Digi-Sense Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill - 08077-97

Item #:
DS-08077-97
Brand:
Digi-Sense
Digi-Sense Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill - 08077-97
$47.78
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill - 08077-97

Digi-Sense Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill - 08077-97

$47.78

08077-97 Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill by Digi-Sense

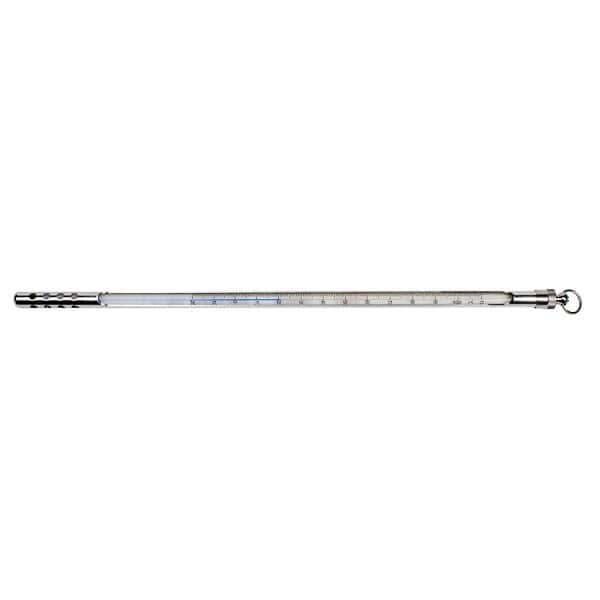

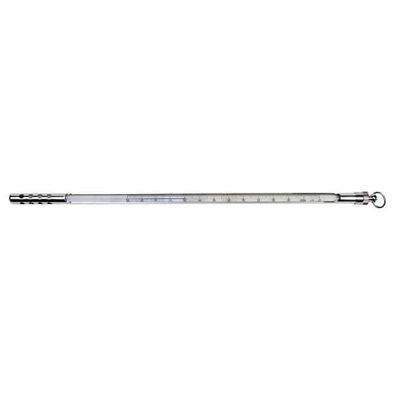

Ideal for use in application where thermometers needs added protection from minor shocks. Nickel/plated brass armor shell protects these thermometers from accidental breakage during use and storage. The armor case has a screw cap with ring top and viewing window; the lower section that surrounds the bulb has small openings for circulation.

Thermometers feature permanently fused markings, blue spirit liquid, white background glass; are also individually serial numbered. Include an statement of accuracy and a triangular-style antiroll fitting.

Armor shell absorbs shock and prevents thermometer damage

  • Nonmercury blue spirit liquid
  • Statement of accuracy included
Length (") 14
Min Temperature (° C) -10
Max Temperature (° C) 260
Accuracy ±2.0°C; ±2.5°C between 100°C and 200°C; ±3.0°C between 200°C and 230°C; ±3.5°C above 230°C
Division (° C) 1
Thermometer Fill Blue Spirit
Dial / Case Material Nickel Plated Brass
Overall Length (in) 14
Overall Length (mm) 350
Immersion Depth (mm) 76
Stem Material White-Back Glass
Description Armored Liquid-In-Glass Thermometer; -10 to 260C, 76mm Immersion, Organic Liquid Fill
