Digi-Sense TI.32 12 Bimetal Thermometer, Filled, Adjustable Angle, 3 in. Dia/12 in. L; 25-125F/-5-50C - 08084-02

Item #:
DS-08084-02
Brand:
Digi-Sense
Digi-Sense TI.32 12 Bimetal Thermometer, Filled, Adjustable Angle, 3 in. Dia/12 in. L; 25-125F/-5-50C - 08084-02
$161.70
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense TI.32 12 Bimetal Thermometer, Filled, Adjustable Angle, 3 in. Dia/12 in. L; 25-125F/-5-50C - 08084-02

Digi-Sense TI.32 12 Bimetal Thermometer, Filled, Adjustable Angle, 3 in. Dia/12 in. L; 25-125F/-5-50C - 08084-02

$161.70

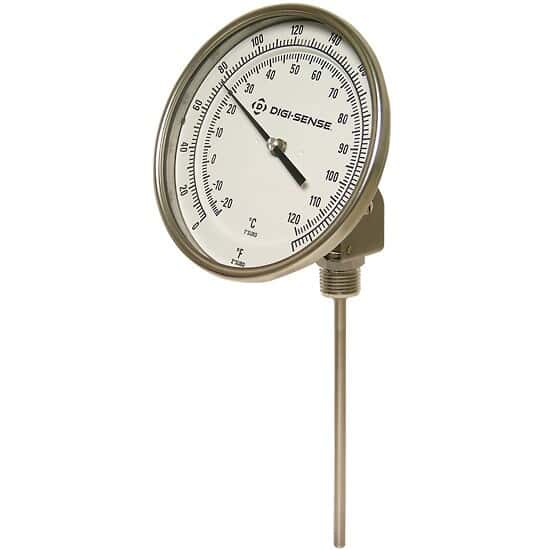

08084-02 TI.32 12 Bimetal Thermometer, Filled, Adjustable Angle, 3" Dia/12" L; 25-125F/-5-50C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases).

Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for Acrylic lens thermometers is 200°F (93°C).

Key Features

  • Dampened movement
  • Anti-parallax dial for accurate readings
  • Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
  • Rugged 304 stainless steel construction with Acrylic lens
  • Recalibrate using the external reset screw
  • For use in applications that do not exceeding 200°F
Min Temperature (°F) 25
Min Temperature (° C) -5
Max Temperature (°F) 125
Max Temperature (° C) 50
Accuracy ±1% full-scale
Division (° C) 1
Division (°F) 2
Thermometer Fill Silicone
Dial Size (in) 3
Dial / Case Material 304 Stainless Steel
Stem Length (in) 12
Stem Diameter (in) 0.25
Stem Material 304 Stainless Steel
Connection 0.5" NPT(M)
Description Bimetalal Thermometer, Filled, Adjustable Angle, 3" Dia/12" L; 25-125F/-5-50C
