Digi-Sense TI.30 6 Back-Con Bimetal Thermometer, Dial 3 in., 6 in. L/50-550F/10-290C - 08140-04

Item #:
DS-08140-04
Brand:
Digi-Sense
Digi-Sense TI.30 6 Back-Con Bimetal Thermometer, Dial 3 in., 6 in. L/50-550F/10-290C - 08140-04
$54.60
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense TI.30 6 Back-Con Bimetal Thermometer, Dial 3 in., 6 in. L/50-550F/10-290C - 08140-04

Digi-Sense TI.30 6 Back-Con Bimetal Thermometer, Dial 3 in., 6 in. L/50-550F/10-290C - 08140-04

$54.60

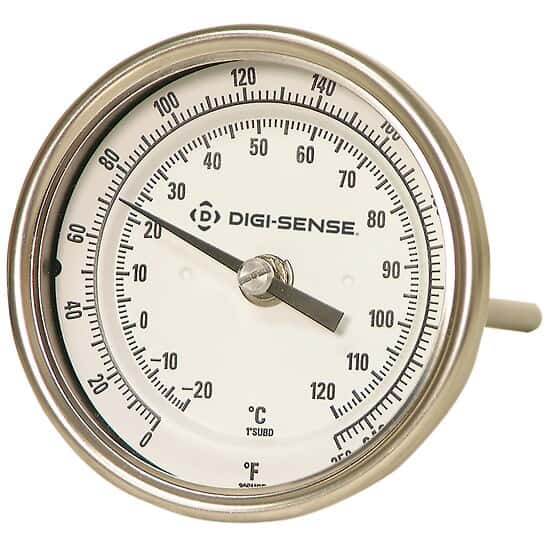

08140-04 TI.30 6 Back-Con Bimetal Thermometer, Dial 3", 6" L/50-550F/10-290C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).

Key Features

  • Greater temperature range
  • Anti-parallax dial for accurate readings
  • Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
  • Rugged 304 stainless steel construction with a clear glass lens
  • Recalibrate using the external reset screw
Min Temperature (°F) 50
Min Temperature (° C) 10
Max Temperature (°F) 550
Max Temperature (° C) 290
Accuracy ±1% full-scale
Division (° C) 1
Division (°F) 2
Dial Size (in) 3
Dial / Case Material 304 Stainless Steel
Stem Length (in) 6
Stem Diameter (in) 0.25
Stem Material 304 Stainless Steel
Connection 0.5" NPT(M)
Description Back-Con Bimetalal Thermometer, Dial 3" , 6" L/50-550F/10-290C
