Digi-Sense Type T Quick-Response PFA-Insulated Thermocouple Probe - 08506-70

Item #:

DS-08506-70

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

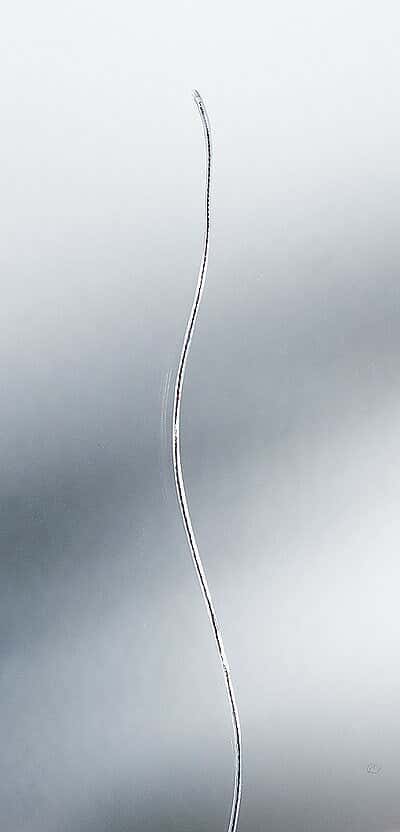

08506-70 Type T Quick-Response PFA-Insulated Thermocouple Probe by Digi-Sense

All insulated-wire probes include straight insulated cable with no handle and feature ANSI color-coded miniconnectors: type T-blue. This quick-response PFA-insulated probe, is 40-gauge (0.003" dia) wire, with a 0.009" outer diameter and is 3-ft in length. This microoprobe is for tissue implantable and ideal for semisolids.

Response time: 0.025 seconds

Includes

five 23-gauge hypodermic needles.

Specifications

Probe Type	T
Min Temperature (° F)	-418
Max Temperature (° F)	302
Min Temperature (° C)	-250
Max Temperature (° C)	150
Time Constant	0.005 second
Response Time (Sec)	0.025
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	PFA-insulated wire
Sheath Diameter (in)	0.0008
Description	Type T Quick-Response PFA-Insulated Thermocouple Probe
