Digi-Sense BX-500 Portable Infrared Calibrator, 122 to 932F - 16111-00
Item #:
DS-16111-00
Brand:
Digi-Sense
Share this product:

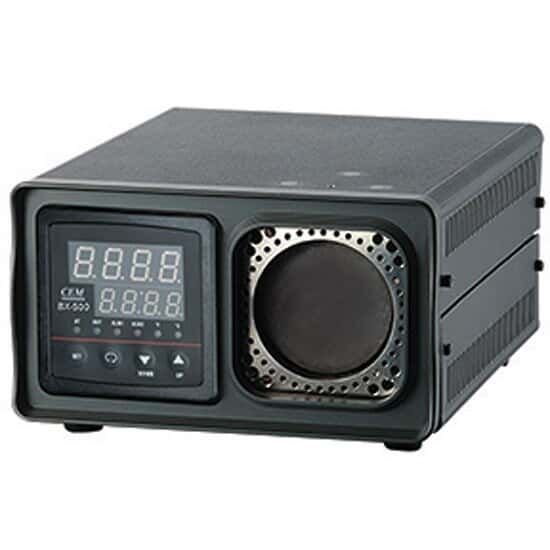

16111-00 BX-500 Portable Infrared Calibrator, 122 to 932F by Digi-Sense
This infrared calibrator features a microprocessor-based PID temperature controller with precision 100 Pt RTD providing accuracy and stability. Swing down the riser to raise the front end for greater visibility and easier programming. Switch between °F and °C to accommodate any thermometer or test protocol. Fan cools the heater quickly to a lower set point, so you can perform more calibrations.
- Large 2-1/4" (57 mm) black body with 0.95 emissivity satisfies most test geometry requirements
- Self-test upon startup alerts you to malfunctions, saving time
- Dual-line LED shows set point and actual temperatures simultaneously
Includes
power cord.
| Max Temperature (° F) | 932 |
| Min Temperature (° F) | 122 |
| Temperature Resolution (° F) | 0.1 |
| Temperature Accuracy | ±1.0°F at 212°F (±0.5°C at 100°C); ±3.6°F at 932°F (±1.8°C at 500°C) |
| Heat-up Rate | 40 minutes |
| Cooling Rate | 45 minutes from max to 100°C |
| Stability | ±0.2°F at 212°F (±0.1°C at 100°C); ±0.6°F at 932°F (±0.3°C at 500°C) |
| Width (in) | 7 3/32 |
| Height (in) | 4 1/4 |
| Depth (in) | 9 3/16 |
| Width (cm) | 18 |
| Height (cm) | 11.4 |
| Depth (cm) | 23.3 |
| Power (VAC) | 110 / 220 |
| Power (Hz) | 50/60 |
| Description | Portable Infrared Calibrator, 122 to 932F |
