Digi-Sense Type J Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6 in. L, .250 Dia, Ungrounded Junction - 18520-05

Item #:
DS-18520-05
Brand:
Digi-Sense
Digi-Sense Type J Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6 in. L, .250 Dia, Ungrounded Junction - 18520-05
$89.78
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Type J Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6 in. L, .250 Dia, Ungrounded Junction - 18520-05

Digi-Sense Type J Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6 in. L, .250 Dia, Ungrounded Junction - 18520-05

$89.78

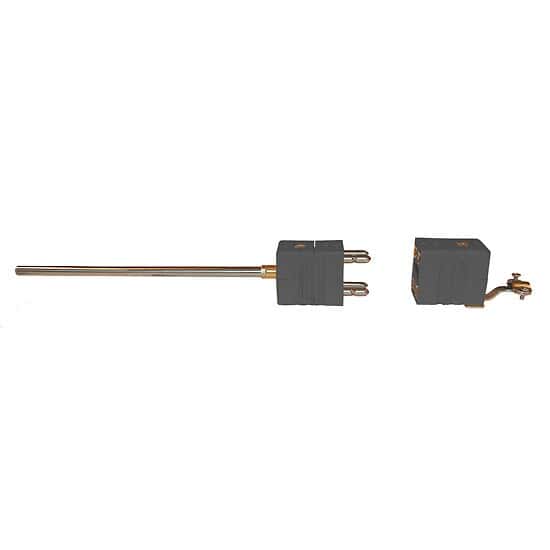

18520-05 Type J Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6" L, .250 Dia, Ungrounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

  • Ideal for continuous monitoring
  • Designed with 316 stainless steel sheath
  • Response Time: 1.2 - 5 seconds or greater
  • Includes a stand alone female connector for instalation to a thermocouple extension cable
  • Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
  • Custom designs or changes to this product are available upon request
Length (") 6
Probe Type J
Min Temperature (° F) 32
Max Temperature (° F) 1400
Min Temperature (° C) 0
Max Temperature (° C) 760
Temperature Accuracy ±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Junction Ungrounded
Connector Type Standard Connector, Dual
Sheath material 316 Stainless Steel
Sheath Length (in) 6
Sheath Diameter (in) 0.25
Description Type J Thermocouple Probe Probe Quick Disconnect Dual with Std Con, 6" L, .250 Dia, Ung Jct
