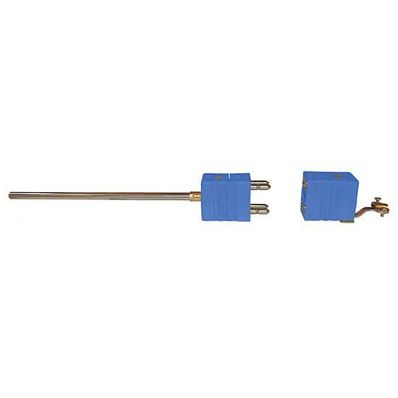

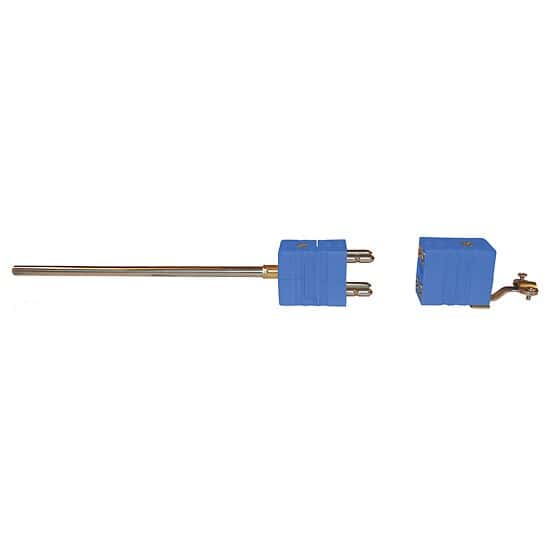

Digi-Sense Type T Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6 in. L, .250 Dia, Exposed Junction - 18520-10

Item #:

DS-18520-10

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

18520-10 Type T Thermocouple Probe Quick Dis-connector, Dual with Std-Connector, 6" L, .250 Dia, Exposed Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

Ideal for continuous monitoring
Designed with 316 stainless steel sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
Custom designs or changes to this product are available upon request

Specifications

Length (")	6
Probe Type	T
Min Temperature (° F)	-418
Max Temperature (° F)	500
Min Temperature (° C)	-250
Max Temperature (° C)	260
Temperature Accuracy	±1.8°F (±1.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Junction	Exposed
Connector Type	Standard Connector, Dual
Sheath material	316 Stainless Steel
Sheath Length (in)	6
Sheath Diameter (in)	0.25
Description	Type T Thermocouple Probe Probe Quick Disconnect Dual with Std Con, 6" L, .250 Dia, Exp Jct
