Digi-Sense Type K Thermocouple Probe Quick DisConnector, Dual with Std-Connector, 12 in. L, .250 Dia, Grounded Junction - 18520-12

Item #:
DS-18520-12
Brand:
Digi-Sense
Digi-Sense Type K Thermocouple Probe Quick DisConnector, Dual with Std-Connector, 12 in. L, .250 Dia, Grounded Junction - 18520-12
$96.08
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Type K Thermocouple Probe Quick DisConnector, Dual with Std-Connector, 12 in. L, .250 Dia, Grounded Junction - 18520-12

Digi-Sense Type K Thermocouple Probe Quick DisConnector, Dual with Std-Connector, 12 in. L, .250 Dia, Grounded Junction - 18520-12

$96.08

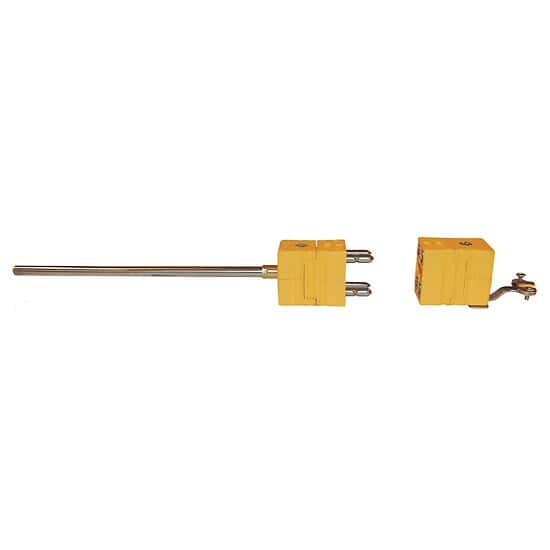

18520-12 Type K Thermocouple Probe Quick DisConnector, Dual with Std-Connector, 12" L, .250 Dia, Grounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

  • Ideal for continuous monitoring
  • Designed with 316 stainless steel sheath
  • Response Time: 1.2 - 5 seconds or greater
  • Includes a stand alone female connector for instalation to a thermocouple extension cable
  • Each probe comes with a color coded ANSI dual standard connector: type J-black, type K-yellow, type T-blue, and type E-purple.
  • Custom designs or changes to this product are available upon request
Length (") 12
Probe Type K
Min Temperature (° F) -250
Max Temperature (° F) 1650
Min Temperature (° C) -150
Max Temperature (° C) 899
Temperature Accuracy ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction Grounded
Connector Type Standard Connector, Dual
Sheath material 316 Stainless Steel
Sheath Length (in) 12
Sheath Diameter (in) 0.25
Description Type K Thermocouple Probe Probe Quick Disconnect Dual with Std Con, 12" L, .250 Dia, Grn Jct
