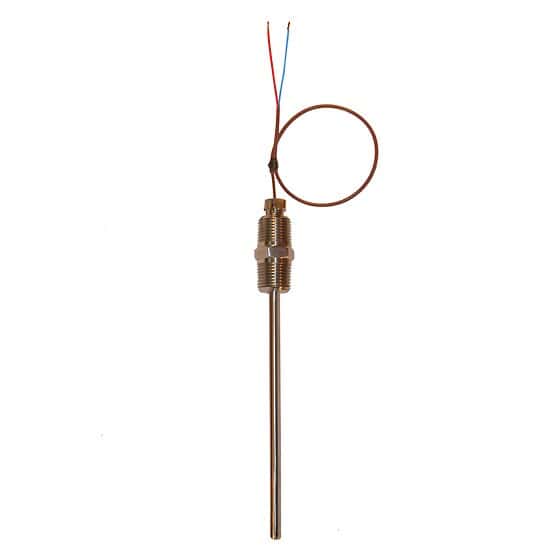

Digi-Sense Type T Spring Loaded Ind Thermocouple Probe Probe 6 in. L, 12 in. Ext .250 Dia, Ung Jct - 18525-14

Item #:
DS-18525-14
Brand:
Digi-Sense
Digi-Sense Type T Spring Loaded Ind Thermocouple Probe Probe 6 in. L, 12 in. Ext .250 Dia, Ung Jct - 18525-14
$78.23
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Type T Spring Loaded Ind Thermocouple Probe Probe 6 in. L, 12 in. Ext .250 Dia, Ung Jct - 18525-14

Digi-Sense Type T Spring Loaded Ind Thermocouple Probe Probe 6 in. L, 12 in. Ext .250 Dia, Ung Jct - 18525-14

$78.23

18525-14 Type T Spring Loaded Ind Thermocouple Probe Probe 6" L, 12" Ext .250 Dia, Ung Jct by Digi-Sense

These probes cannot be inserted directly into a medium. Spring loaded industrials are not sealed where the threads meet the probe. They must be inserted into a thermowell or other sealed vessel.

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C)

  • The probes can be installed with current housing without having to purchase a whole new industrial assembly
  • Response Time: 3.75 seconds or greater
  • Each probe comes with ½" NPT insertion threads
  • Probes are spring loaded which allows the probe to be bottomed out into a thermowell
  • Probes are welded and sealed which allows for direct insertion into a vessel
  • Custom designs or changes to this product are available upon request
  • Each probe comes with a color coded ANSI stripped leads: type J-red/white, type K-red/yellow, type T-red/blue
Probe Type T
Min Temperature (° F) -418
Max Temperature (° F) 500
Min Temperature (° C) -250
Max Temperature (° C) 260
Temperature Accuracy ±1.8°F (±1.0°C), or ±0.4% of reading above 32°F (0°C); ±0.8% of reading below 32°F (0°C)
Junction Ungrounded
Connector Type Stripped wire; 1/2" NPT(M) x 1/2" NPT(M)
Sheath material 316 Stainless Steel
Sheath Length (in) 6
Sheath Diameter (in) 0.25
Description Type T Spring Loaded Ind Thermocouple Probe Probe 6" L, 12" Ext .250 Dia, Ung Jct
