Digi-Sense Type J Economic Hollow Thermocouple Probe 12 in. L, 36 in. E x t 30 Awg .062 Dia, Grounded Junction - 18525-61

Item #:
DS-18525-61
Brand:
Digi-Sense
Digi-Sense Type J Economic Hollow Thermocouple Probe 12 in. L, 36 in. E x t 30 Awg .062 Dia, Grounded Junction - 18525-61
$35.50
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Type J Economic Hollow Thermocouple Probe 12 in. L, 36 in. E x t 30 Awg .062 Dia, Grounded Junction - 18525-61

Digi-Sense Type J Economic Hollow Thermocouple Probe 12 in. L, 36 in. E x t 30 Awg .062 Dia, Grounded Junction...

$35.50

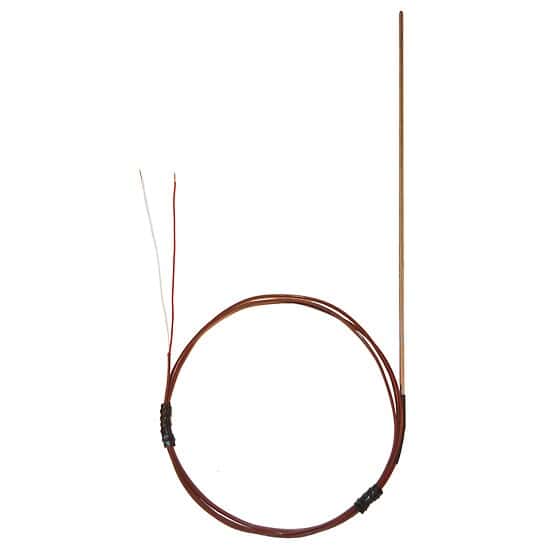

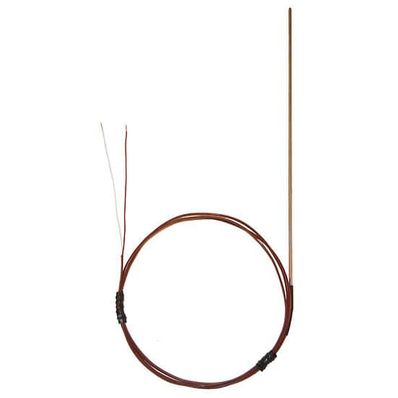

18525-61 Type J Economic Hollow Thermocouple Probe 12" L, 36" E x t 30 Awg .062 Dia, Grounded Junction by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

  • Response Time: 2-4 seconds or greater
  • Each probe comes with a color coded ANSI mini connector: type J-black, type K-yellow, type T-blue, and type E-purple.
  • Custom designs or changes to this product are available upon request
Length (") 12
Probe Type J
Min Temperature (° F) 32
Max Temperature (° F) 425
Min Temperature (° C) 0
Max Temperature (° C) 218
Temperature Accuracy ±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Junction Grounded
Connector Type Stripped Leads
Sheath material 316 Stainless Steel
Sheath Length (in) 12
Sheath Diameter (in) 0.0625
Cable Wire Gauge (Ga) 30
Description Type J Econ Hollow Thermocouple Probe Probe 12" L, 36" Ext 30 Awg .062 Dia, Grn Jct
