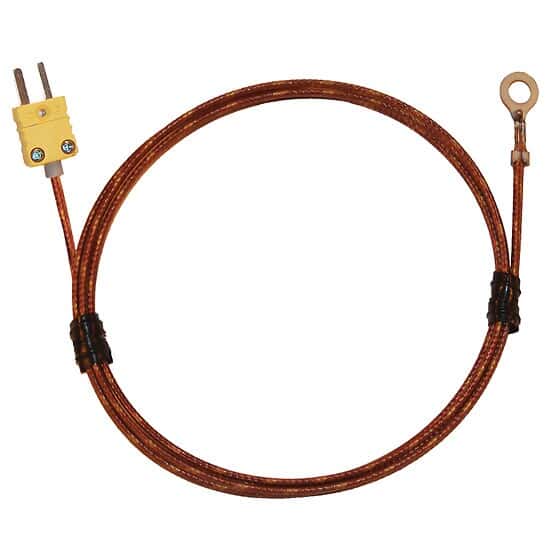

18526-14 Type K Economic Bolt On Thermocouple Probe #6 Screw with Mini-Connector, 12" Fiberglass Ext. Grounded by Digi-Sense

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

  • Available in #6 (M3.5) or #8 (M4) screw sizes and different lead lenghts
  • Response Time: 2-4 seconds or greater
  • Each probe comes with a color coded ANSI mini connector or stripped leads: type J-black, type K-yellow, type T-blue, and type E-purple.
  • Custom designs or changes to this product are available upon request
Probe Type K
Min Temperature (° F) -250
Max Temperature (° F) 900
Min Temperature (° C) -150
Max Temperature (° C) 482
Temperature Accuracy ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction Grounded
Connector Type Mini Connector
Sheath material 24 AWG, Fiberglass Insulated
Description Type K Econ Bolt On Thermocouple Probe Probe #6 Scr with Mini Con, 12" Fiberglass Ext. Grn
