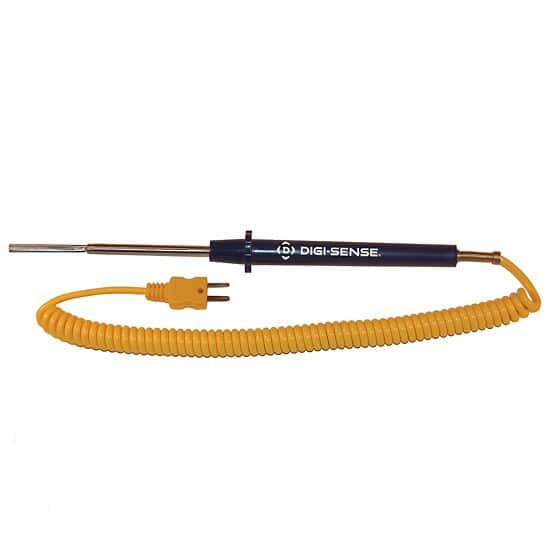

Digi-Sense Type K Flat-Leaf Thermocouople Probe, with Mini-Connector, 4.5 in. L, 5ft Coil Cord - 18526-56
Item #:
DS-18526-56
Brand:
Digi-Sense
Share this product:
18526-56 Type K Flat-Leaf Thermocouople Probe, with Mini-Connector, 4.5" L, 5ft Coil Cord by Digi-Sense
The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
- Ideal for measuring in hard to reach spaces due to a flexible tip
- Designed for extremely fast response due to the low mass but yet more durable than other miniature diameter probes (.035" thick at tip)
- Response Time: .75 seconds or greater
- Each probe comes with a color coded ANSI coiled cable: type J-black, type K-yellow, type T-blue, and type E-purple.
- Custom designs or changes to this product are available upon request
| Length (") | 9 |
| Probe Type | K |
| Min Temperature (° F) | -250 |
| Max Temperature (° F) | 675 |
| Min Temperature (° C) | -150 |
| Max Temperature (° C) | 357 |
| Temperature Accuracy | ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater |
| Junction | Grounded |
| Connector Type | Mini Connector |
| Sheath material | 316 Stainless Steel |
| Handle Material | ABS plastic |
| Sheath Length (in) | 4.5 |
| Handle Length (in) | 4.5 |
| Cable Type | Coiled |
| Cable Length (in) | 60 |
| Description | Type K Flat-Leaf Thermocouople Probe, with Mini Con, 4.5" L, 5ft Coil Cord |
