Digi-Sense Heavy-Duty Industrial Digital Multimeter with Bluetooth Connectivity - 20250-64

Item #:

DS-20250-64

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

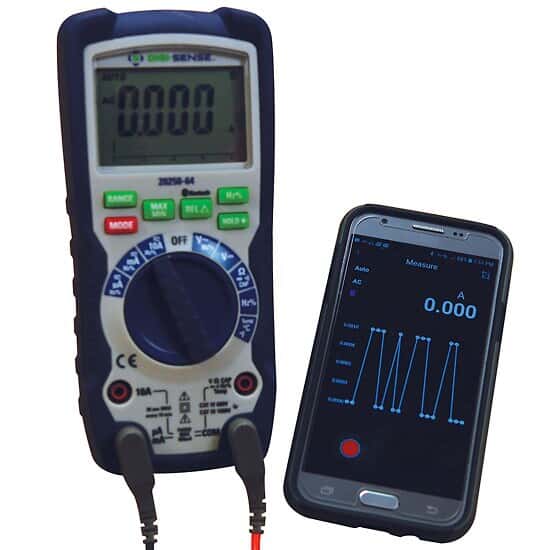

20250-64 Heavy-Duty Industrial Digital Multimeter with Bluetooth® Connectivity by Digi-Sense

Using our free Digi-Sense D/S Meter app, this heavy-duty industrial digital multimeter with Bluetooth® technology allows you to transmit data directly to your Android or iOS device. Now you can view data at a safe distance from dangerous equipment or hazardous locations and even use your smart device as a real-time secondary display for checking measurements, eliminating the need to write down readings on paper. The results are automatically stored in the app with a date-and-time stamp and can be saved as a CSV file and emailed for future reference, manipulation, or analysis to help determine trends and conditions over a long period of time. Use the app to attach photos and notes to the records creating a clear reference point for your work - ideal for record keeping at large sites.

The handheld digital multimeter measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and continuity. Special functions include auto ranging, data Hold, Max/Min readings, diode test, audible continuity check, relative mode, duty cycle, low-battery indication, and auto power-off. The meter also offers True RMS for more accurate current readings, temperature measurement with a type K thermocouple, and analog bar graph for viewing trends.

Key Features

Get the most out of your data with our user-friendly mobile app
Unlimited data storage based on smart device capacity
Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
Rugged double-molded housing provides increased durability
Bright, large backlit 4000-count LCD permits viewing in low-light conditions
Tilt stand offers easy hands-free viewing
IP67 waterproof rated
CAT IV-600 V, CAT III-1000 V safety rating

Includes

Test leads, type K thermocouple probe with mini connector, carrying case, 9 V battery, and NIST-traceable calibration.

Specifications

DC Min (Volts)	0.4
DC Max (Volts)	1000
DC Voltage Accuracy	±1.0% rdg 8 digits
DC Min (amps)	0.0004
DC Max (amps)	10
DC Current Accuracy	±1.0% rdg 3 digits
AC Min (Volts)	0.4
AC Max (Volts)	1000
Ac Voltage Accuracy	±1.5% rdg 10 digits
AC Min (amps)	0.0004
AC Max (amps)	10
AC Current Accuracy	±3.0% rdg 5 digits
Resistance Min (Ω)	400
Resistance Max (MΩ)	40
Capacitance Min (nF)	4000000
Capacitance Max (mF)	40
Capacitance Accuracy	±3.0% rdg ± 5 digits
Frequency Min (Hz)	9.999
Frequency Max (KHz)	9.999
Frequency Accuracy	±1.5% ± 5 digits
Resistivity Accuracy	±1.2% rdg ± 4 digits
Continuity	Yes
Diode Tester	Yes
Duty Cycle	Yes
True Rms	Yes
Min Temperature (° F)	-50
Max Temperature (° F)	1382
Min Temperature (° C)	-45
Max Temperature (° C)	750
Temperature Accuracy	±3.0% rdg ± 9°F (5°C)
Display	Backlit LCD
Memory	Unlimited data storage based on smart device capacity
Safety Rating	CAT IV-600 V, CAT III-1000 V
Power	One 9 V battery
Width (in)	3.25
Length (in)	2.25
Height (in)	7
Width (cm)	8.2
Length (cm)	5.7
Height (cm)	18
Description	Heavy Duty Industrial Digital Multimeter with Bluetooth
