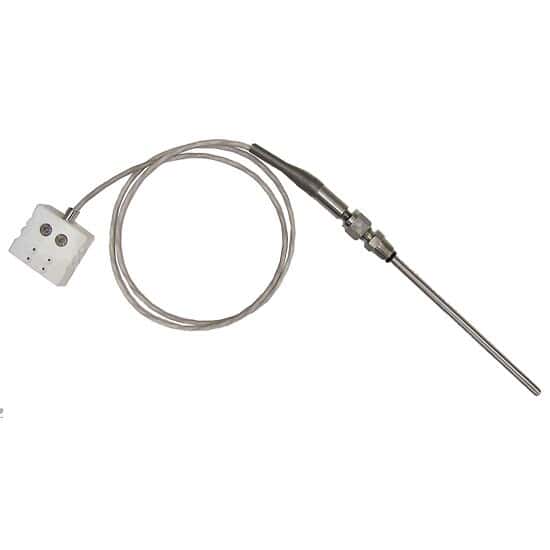

90447-36 RTD Probe 6" L 1/8" NPT Re-Adjustable Standard Jack by Digi-Sense

Resistance Temperature Detectors, or RTDs, are used in many process and laboratory applications where accuracy and repeatability are of prime importance. RTD elements are available in many different materials and with different temperature coefficients. The most commonly used element is a wire-wound platinum element, conforming to the DIN standard and with a .00385 temperature coefficient.

Key Features

  • All probes are low range
  • 316 stainless steel sheath material
  • Extension leadwire transition with relief spring (350,°F)
  • 3-wire RTD, 100 Ω
  • Accuracy ±0.1%
  • -328 to 400°F (-200 to 204°C)
  • .00385°C temperature coefficient
  • Constructed using PTFE Insulated silver plated copper internal leads
Length (") 6
Probe Type RTD
Min Temperature (° F) -328
Max Temperature (° F) 400
Min Temperature (° C) -200
Max Temperature (° C) 204
Connector Type Standard jack
Sheath Length (in) 6
Description RTD Probe 6" L 1/8" NPT Re-Adjustable Standard Jack
