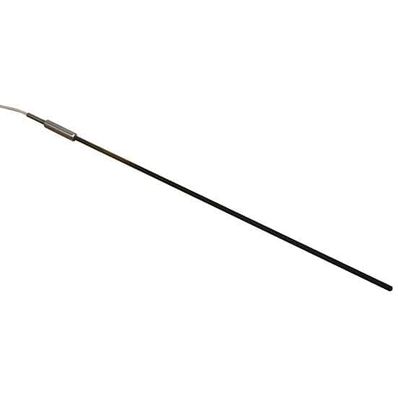

Digi-Sense Secondary Reference PRT, 0.25 in. x 12 in., -200~420C, Bare Wire - 90452-32

Item #:
DS-90452-32
Brand:
Digi-Sense
Digi-Sense Secondary Reference PRT, 0.25 in. x 12 in., -200~420C, Bare Wire - 90452-32
$735.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Secondary Reference PRT, 0.25 in. x 12 in., -200~420C, Bare Wire - 90452-32

Digi-Sense Secondary Reference PRT, 0.25 in. x 12 in., -200~420C, Bare Wire - 90452-32

$735.00

90452-32 Secondary Reference PRT, 0.25" x 12", -200~420C, Bare Wire by Digi-Sense

AM1730 - Secondary reference PRT/RTD probes: These probes are the workhorse of laboratories. With a calibration uncertainty at 0°C of just ±0.015°C, these probes fully meet ITS-90 criteria for reference thermometers fully. The unique design achieves an excellent balance between hysteresis effect and mechanical/thermal shocks. Both series boast very low short term stability of 7 mK at TPW. The AM1730 has a range of -200 to 420°C.

  • Equivalent to Fluke Calibration / Hart Scientific Model 5615 and 5616
Probe Type Secondary Reference PRT/RTD
Min Temperature (° F) -328
Max Temperature (° F) 788
Min Temperature (° C) -200
Max Temperature (° C) 420
Temperature Accuracy ±0.015°C and ±0.01°C/100 hr
Response Time (Sec) 9
Connector Type Stripped Wire
Sheath Length (in) 12
Sheath Diameter (in) 0.25
Description Sec. Ref. PRT, 0.25" x 12" , -200~420C, Bare Wire
