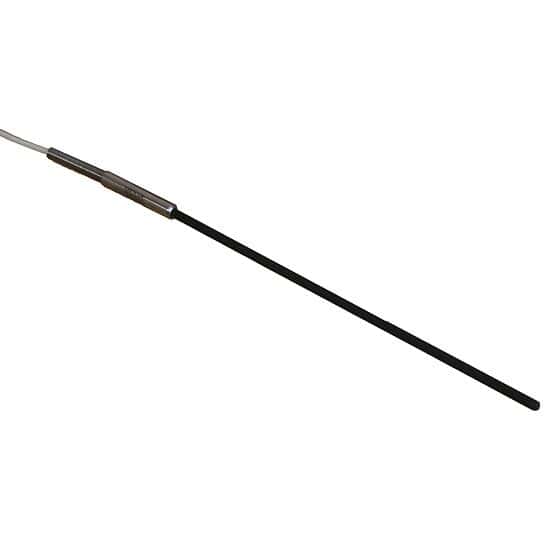

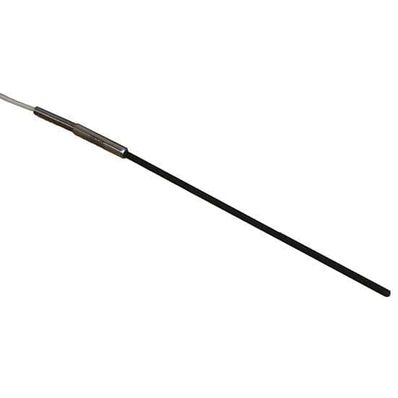

Digi-Sense Secondary Reference PRT, 0.187 in. x 9 in., -60~300C, Spade - 90452-37
Item #:
DS-90452-37
Brand:
Digi-Sense
Share this product:
90452-37 Secondary Reference PRT, 0.187" x 9", -60~300C, Spade by Digi-Sense
AM1730 - Secondary reference PRT/RTD probes: These probes are the workhorse of laboratories. With a calibration uncertainty at 0°C of just ±0.015°C, these probes fully meet ITS-90 criteria for reference thermometers fully. The unique design achieves an excellent balance between hysteresis effect and mechanical/thermal shocks. Both series boast very low short term stability of 7 mK at TPW. The AM1730 has a range of -200 to 420°C.
- Equivalent to Fluke Calibration / Hart Scientific Model 5615 and 5616
| Probe Type | Secondary Reference PRT/RTD |
| Min Temperature (° F) | -76 |
| Max Temperature (° F) | 572 |
| Min Temperature (° C) | -60 |
| Max Temperature (° C) | 300 |
| Temperature Accuracy | ±0.015°C and ±0.01°C/100 hr |
| Response Time (Sec) | 9 |
| Connector Type | Spade Lugs |
| Sheath Length (in) | 9 |
| Sheath Diameter (in) | 0.1875 |
| Description | Sec. Ref. PRT, 0.187" x 9" , -60~300C, Spade |
