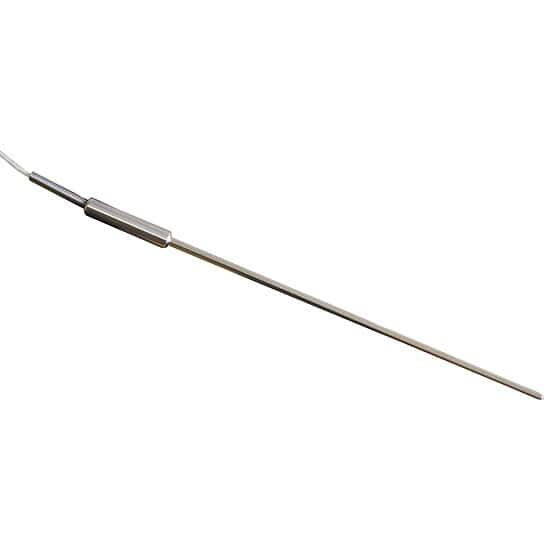

Digi-Sense Secondary SPRT, 0.25 in. x 12 in., -200~670C, Spade - 90452-49

Item #:
DS-90452-49
Brand:
Digi-Sense
Digi-Sense Secondary SPRT, 0.25 in. x 12 in., -200~670C, Spade - 90452-49
$1,761.90
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Secondary SPRT, 0.25 in. x 12 in., -200~670C, Spade - 90452-49

Digi-Sense Secondary SPRT, 0.25 in. x 12 in., -200~670C, Spade - 90452-49

$1,761.90

90452-49 Secondary SPRT, 0.25" x 12", -200~670C, Spade by Digi-Sense

AM1760 Series - Secondary standard SPRT/RTD probes: These probes fill the gap between affordable, but temperature limited secondary PRTs and more expensive, yet highly accurate SPRTs. The unique design makes them very stable both short term (±2 mK at TPW) and long term (<19 mK typical at TPW after 500 hours) accuracy is ±6 mK at TPW . These high performance probes fully meet ITS-90 criteria for reference thermometers and are an excellent choices for reference standards for metrology labs of various levels. The AM1760 is nominally 100 ohm

  • Equivalent to Fluke Calibration / Hart Scientific Model 5626
Probe Type Secondary Reference PRT/RTD
Min Temperature (° F) -328
Max Temperature (° F) 1238
Min Temperature (° C) -200
Max Temperature (° C) 670
Temperature Accuracy ±0.006°C and ±0.004°C/100 hr
Response Time (Sec) 9
Connector Type Spade Lugs
Sheath Length (in) 12
Sheath Diameter (in) 0.25
Description Sec. SPRT, 0.25" x 12" , -200~670C, Spade
