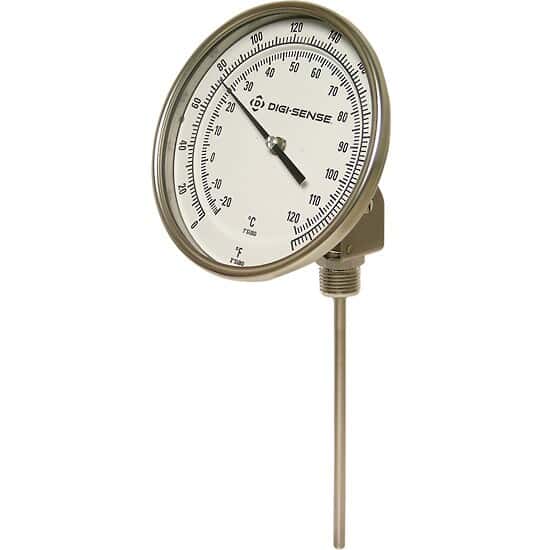

90492-03 Adjustable Angle Bimetal Thermometer, 3" Dial, 6" L/50-300F/10-150C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).

  • Greater temperature range
  • Anti-parallax dial for accurate readings
  • Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
  • Rugged 304 stainless steel construction with a clear glass lens
  • Recalibrate using the external reset screw
Min Temperature (° F) 50
Min Temperature (° C) 10
Max Temperature (° F) 300
Max Temperature (° C) 150
Accuracy ±1% full-scale
Division (° C) 1
Division (° F) 2
Dial Size (in) 3
Dial / Case Material 304 Stainless Steel
Stem Length (in) 6
Stem Diameter (in) 0.25
Stem Material 304 Stainless Steel
Connection 0.5" NPT(M)
Description Adjustable Angle Bimetalal Thermometer, 3" Dial, 6" L/50-300F/10-150C
