Digi-Sense Dampened Back-Con Bimetal Thermometer, 3 in. Dial, 9 in. L/50-550F/10-290C - 90550-66

Item #:
DS-90550-66
Brand:
Digi-Sense
Digi-Sense Dampened Back-Con Bimetal Thermometer, 3 in. Dial, 9 in. L/50-550F/10-290C - 90550-66
$67.73
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Dampened Back-Con Bimetal Thermometer, 3 in. Dial, 9 in. L/50-550F/10-290C - 90550-66

Digi-Sense Dampened Back-Con Bimetal Thermometer, 3 in. Dial, 9 in. L/50-550F/10-290C - 90550-66

$67.73

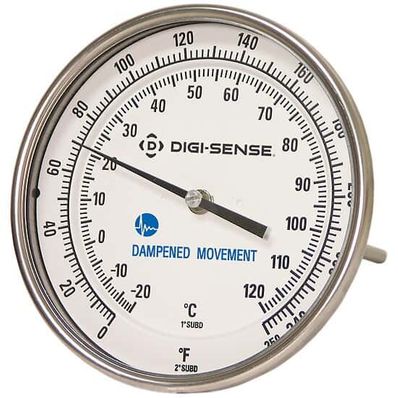

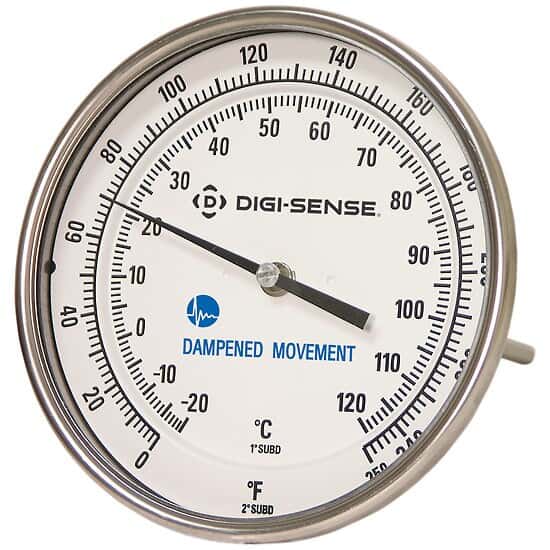

90550-66 Dampened Back-Con Bimetal Thermometer, 3" Dial, 9" L/50-550F/10-290C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).

  • Dampened movement
  • More economical than silicone gauges
  • Greater temperature range than a silicone-filled gauges
  • Anti-parallax dial for accurate readings
  • Eliminate the risk of a leaking case and cross-contamination
  • Rugged 304 stainless steel construction with a clear glass lens
  • Recalibrate using the external reset screw
  • Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
Min Temperature (° F) 50
Min Temperature (° C) 10
Max Temperature (° F) 550
Max Temperature (° C) 290
Accuracy ±1% full-scale
Division (° C) 1
Division (° F) 2
Dial Size (in) 3
Dial / Case Material 304 Stainless Steel
Stem Length (in) 9
Stem Diameter (in) 0.25
Stem Material 304 Stainless Steel
Connection 0.5" NPT(M)
Description Dampened Back-Con Bimetalal Thermometer, 3" Dial, 9" L/50-550F/10-290C
