Digi-Sense Sil-Filled Adjustable Angle Bimetal Thermometer 5 in. Dial 9 in. L Range 50-300F/10-150C - 90551-60

Item #:
DS-90551-60
Brand:
Digi-Sense
Digi-Sense Sil-Filled Adjustable Angle Bimetal Thermometer 5 in. Dial 9 in. L Range 50-300F/10-150C - 90551-60
$171.15
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense Sil-Filled Adjustable Angle Bimetal Thermometer 5 in. Dial 9 in. L Range 50-300F/10-150C - 90551-60

Digi-Sense Sil-Filled Adjustable Angle Bimetal Thermometer 5 in. Dial 9 in. L Range 50-300F/10-150C - 90551-60

$171.15

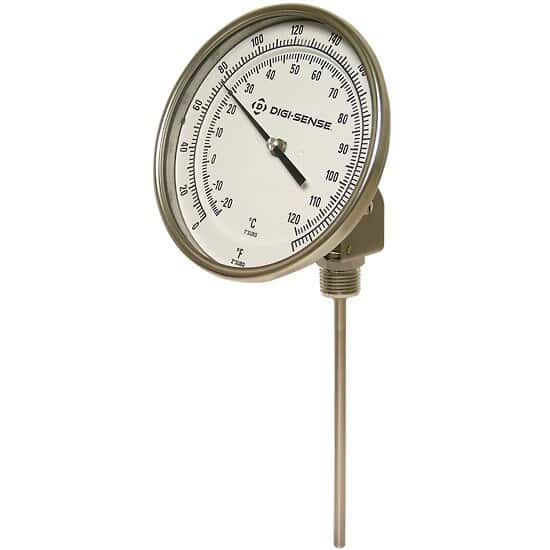

90551-60 Sil-Filled Adjustable Angle Bimetal Thermometer 5" Dial 9" L Range 50-300F/10-150C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for Acrylic lens thermometers is 200°F (93°C).

  • Dampened movement
  • Anti-parallax dial for accurate readings
  • Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
  • Rugged 304 stainless steel construction with Acrylic lens
  • Recalibrate using the external reset screw
  • For use in applications that do not exceeding 200F
Min Temperature (° F) 50
Min Temperature (° C) 10
Max Temperature (° F) 300
Max Temperature (° C) 150
Accuracy ±1% full-scale
Division (° C) 1
Division (° F) 2
Thermometer Fill Silicone
Dial Size (in) 5
Dial / Case Material 304 Stainless Steel
Stem Length (in) 9
Stem Diameter (in) 0.25
Stem Material 304 Stainless Steel
Connection 0.5" NPT(M)
Description Sil-Filled Adjustable Angle Bimetal Thermometer 5" Dial 9" L Range 50-300F/10-150C
