Digi-Sense Logger-Trac Mini Data Logger - 98767-69

Digi-Sense Logger-Trac Mini Data Logger - 98767-69

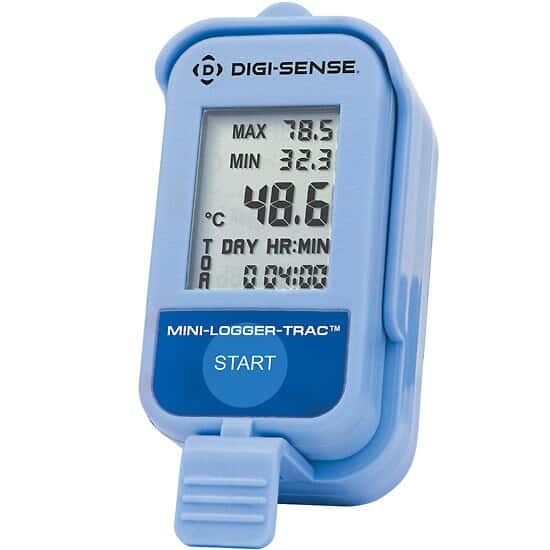

98767-69 Logger-Trac™ Mini Data Logger by Digi-Sense

This compact unit is ideal for measuring temperatures of materials during transportation. Active LCD display technology allows the duration (cumulative time) for the temperature excursion to be viewed on the display without downloading data. View current temperature, MIN/MAX, recording status, run time, alarm (excursion) cumulative time, and alarm tally. Waterproof design (IP66) eliminates concerns when placed in damp environments or areas that need to be washed down.

Order USB cradle/cable 98767-70 and MaxiThermal software 18005-04 (both required) for Logger-Trac Mini data logger. USB cradle/cable houses the logger and allows data to be downloaded via USB cable. Use the MaxiThermal software to download and analyze data or to program individual data logger units. One copy of the software may be used for multiple data loggers.

  • Reusable data logger with great storage capacity
  • Waterproof (IP66) design



Number of Channels 1
Max Temperature (° F) 122
Min Temperature (° F) -31
Max Temperature (° C) 50
Min Temperature (° C) -35
Temperature Resolution (° F) 0.1
Temperature Accuracy (° F) ±0.4°F (32 to 50°F); ±2°F otherwise
Temperature Resolution (° C) 0.1
Temperature Accuracy (° C) ±0.2°C (0 to 10°C); ±1°C otherwise
Sampling Rate user selectable from 2 sec to 24 hr sampling interval or 4 hr to 365 days total recording time (pre-programmed at 5 min 33 sec sampling interval for 30 days total recording time)
Memory Size 7,680 readings
Interface USB
Alarm Cumulative time (excursion) and tally
Connections USB cradle/cable
Max Operating Temperature (° F) 122
Min Operating Temperature (° F) -31
Battery Type CR2032
Power (VDC) 3
Display Type LCD
Length (in) 2
Height (in) 1/2
Width (in) 1
Length (cm) 5.1
Height (cm) 1.3
Width (cm) 2.5
Description Logger-Trac™ Mini Data Logger
