Digi-Sense Temperature/RH Touch Screen Recorder with NIST-Traceable Calibration - WD-20250-40

Digi-Sense Temperature/RH Touch Screen Recorder with NIST-Traceable Calibration - WD-20250-40

$445.20

WD-20250-40 Temperature/RH Touch Screen Recorder with NIST-Traceable Calibration by Digi-Sense

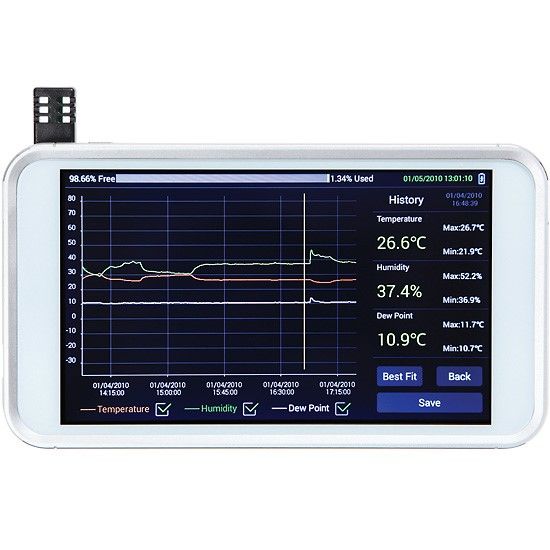

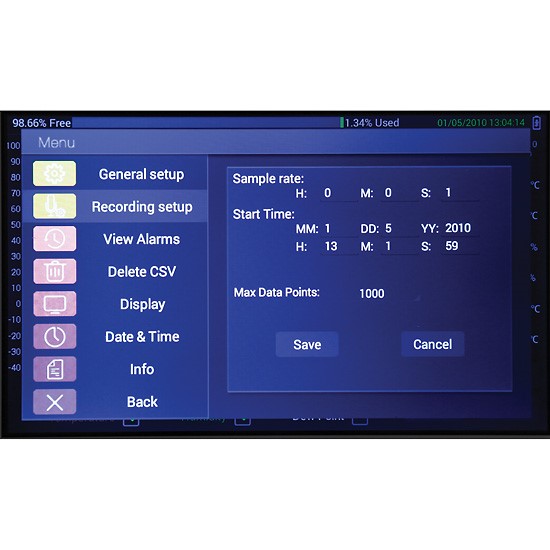

Accurately measure and log temperature, relative humidity, and dew point conditions with this tabletbased instrument. An intuitive touch-screen display makes this recorder easy to use and view. Measured values are simultaneously displayed both graphically and digitally on a high-resolution, color display. Simply touch to program sample frequency, sample size, alarm settings, start mode, and units of measure. Use this invaluable tool in real-time mode or set it to start logging at a future time.

  • Get accurate, reliable measurements with included NIST-traceable calibration
  • Operation is simple right out of the box
  • Resident operating software self-boots by pushing the on/off buttons—no installation necessary
  • Quickly download data in .csv format to your computer via included USB cable

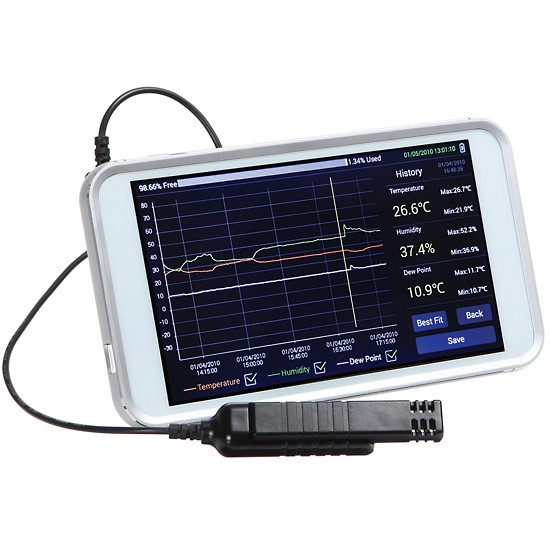

  • Sensor plugs directly into the back of the tablet for local use, or position sensor remotely using the included 6-ft extension cable
  • Link additional extension cables, sold separately, to extend the sensor up to 18 feet from the instrument

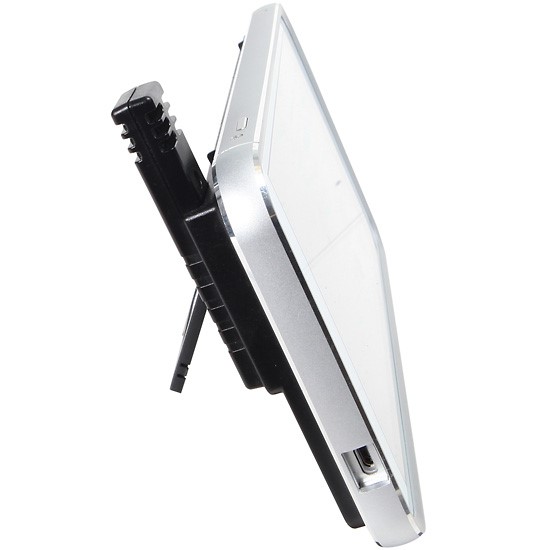

  • Convenient wall-mount or desktop operation

Applications

  • Food, pharmaceutical, and chemical processing and storage
  • Controlled environments
  • Refrigerators and freezers
  • Laboratories
  • Warehouses and storage facilities
  • Museums
  • Libraries
  • Cleanrooms
  • Greenhouses

Includes

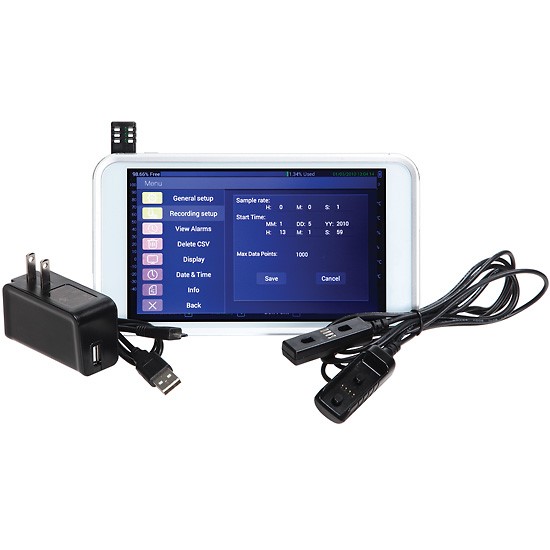

Tablet with built-in stand, temperature/RH sensor, 6-ft (1.8-m) sensor extension cable, USB cable, wall-mounting bracket, power supply, and NIST-traceable calibration with data supplied by InnoCal.

Parameters
Range
Resolution
Accuracy
Temperature
14 to 176°F (-10 to 80°C)
0.1°F (0.1°C)
±0.9°F (0.5°C)
Humidity
0 to 100% RH, noncondensing
0.1%
±2.0% at 25°C, 20% to 80% RH; ±2.5% for remaining
Memory
8GB
Sampling rate
1 second to 24 hours
Display
6" x 31/2" (15.2 x 8.9 cm) color LCD, with 1024 x 600 resolution
Dimensions (W x H x D)
75/8" x 41/4" x 5/8" (19.3 x 10.8 x 1.6 cm)
Power
110 VAC; 2500 mAH rechargeable battery backup
