Digi-Sense Industrial Digital Multimeter, TRMS, with NIST-Traceable Calibration - WD-20250-54

Item #:

DS-WD-20250-54

Brand:

Digi-Sense

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

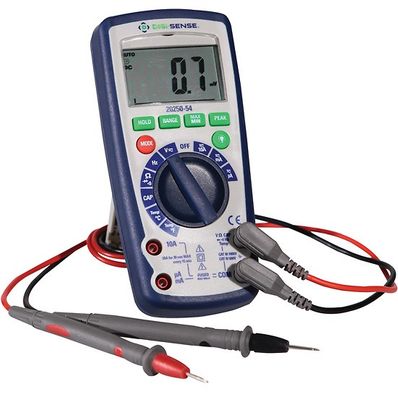

WD-20250-54 Industrial Digital Multimeter, TRMS, with NIST-Traceable Calibration by Digi-Sense

Get quality instruments that deliver consistent, reliable measurements without depleting your budget. These durable, handheld multimeters are an economical alternative to higher-priced instruments on the market today.

Features

Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
Autoranging on select models, automatically selects the optimal measuring range for maximum resolution
Stay safe and prevent damage with overload protection
Increased durability with double-molded plastic housing

Three-in-One Digital Multimeter (20250-52)

Three practical instruments in one: multimeter, noncontact voltage detector, and flashlight
Permanently attached test leads so they don't get lost
Diode check and continuity test included to check accuracy

Compact Digital Multimeters (20250-50, -51)

CAT III-600 V designation for safety
Available in manual ranging version
Bright backlight display has 1.1" tall digits
Model 20250-50 offers dedicated battery test function to check the quality of your 9 V and 1.5 V batteries

Industrial Digital Multimeters (20250-53, -54)

CAT III-600 V and CAT III-1000 V ratings for safety
IP67 rating for dustproof and waterproof protection
Flashing red LED alerts you to presence of live voltage

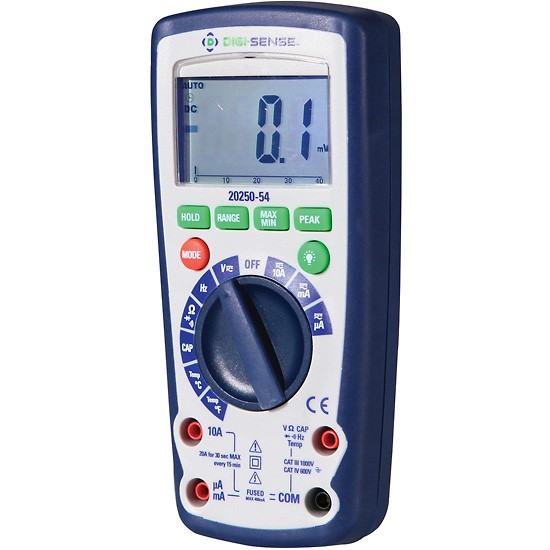

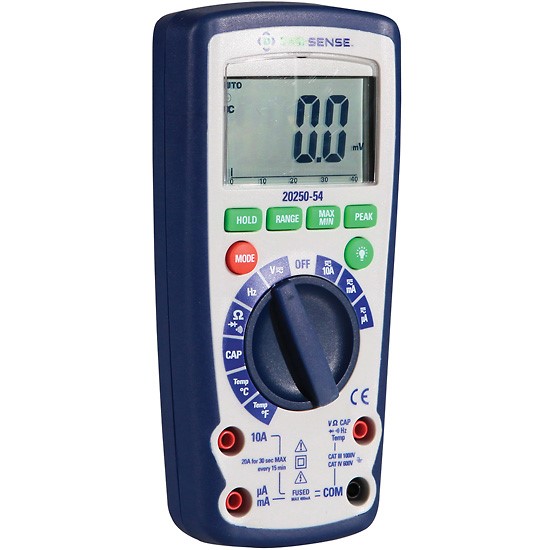

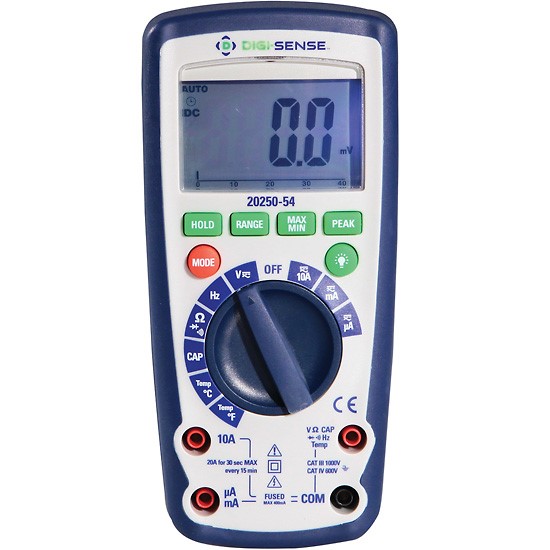

Model 20250-54 has True RMS for improved reading accuracy and an analog bar graph for viewing trends

Applications

Electrical
Industrial
Laboratory
HVAC
R & D

Includes

Test leads (models 20250-50, -51, -52), carrying case (models 20250-50, -51) batteries, and NIST-traceable calibration report with data supplied by InnoCal.

Specifications

Description	3-in-1 DMM	Manual ranging DMM	Auto ranging DMM	Industrial DMM	True RMS industrial DMM
Catalog number	MW-20250-52	MW-20250-50	MW-20250-51	MW-20250-53	MW-20250-54
DC voltage	600 V	600 V	600 V	1000 V	1000 V
AC voltage	600 V	600 V	600 V	1000 V	1000 V
DC current	200 mA	10 A	10 A	10 A	10 A
AC current	200.0 mA	-	10 A	10 A	10 A
Resistance	20.00 MΩ	2.000 MΩ	40.00 MΩ	40.00 MΩ	40.00 MΩ
Continuity	Yes, audible	Yes, audible	Yes, audible	Yes, audible	Yes, audible
Temperature (type K thermocouple	-	-	-4 to 1400°F (-20 to 760°C)	-	-4 to 1400°F (-20 to 760°C)
Capacitance	-	-	200.0 μF	40.00 mF	40.00 mF
Frequency	-	-	9.999 MHz	10.00 MHz	10.00 MHz
Duty cycle	-	-	0.1 to 99.9%	0.1 to 99.9%	-
Diode test	Yes	Yes	Yes	Yes	Yes
Display	2000-count LCD	2000-count LCD	4000-count LCD	4000-count LCD	4000-count LCD with analog bar graph
Power	Two AAA batteries (included)	One 9 V battery (included)		One 9 V battery (included)
Dimensions (L x W x H)	4" x 23/16" x 15/16" (10.4 x 5.5 x 3.3 cm)	57/8" x 23/4" x 17/8" (15 x 7 x 4.8 cm)		73/16" x 31/4" x 23/16" (18.2 x 8.2 x 5.5 cm)
