Digi-Sense Multifunction AC/DC Voltage Tester with Digital Display & Bar Graph - WD-20250-59
Item #:
DS-WD-20250-59
Brand:
Digi-Sense
Share this product:

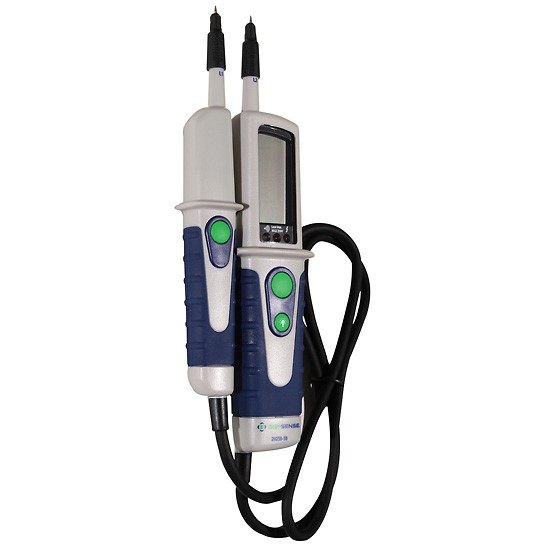

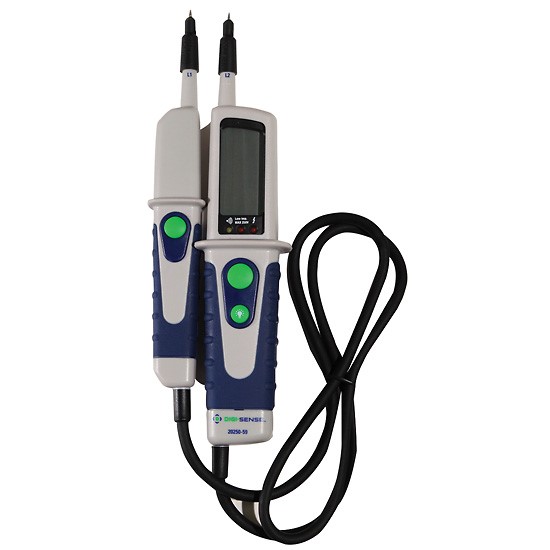

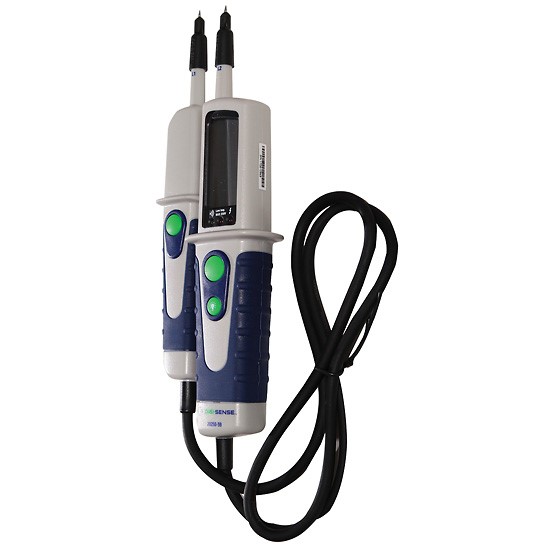

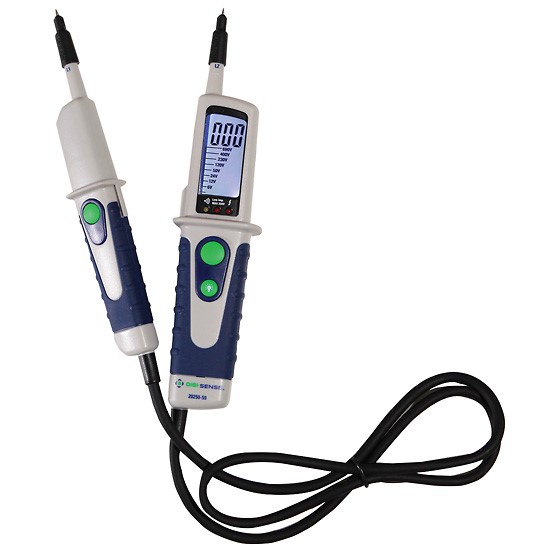

WD-20250-59 Multifunction AC/DC Voltage Tester with Digital Display & Bar Graph by Digi-Sense
Test power outlets and switches for correct circuit wiring before resuming power
- Versatile - perform AC/DC voltage, low impedance voltage, and continuity testing
- Large, easy-to-read LCD with backlight and bar graph display
- Stop phantom voltage from interfering with your readings
- Effectively measure phase rotation direction of motors with rotary field indication
- Work in poorly lit or tight areas with built-in flashlight
- Rugged IP64-rated housing with CAT III-1000 V / CAT IV-600 V safety rating
| Voltage range | 6 to 400 VAC, 0 to 690 VDC |
| Resolution | 1 V |
| Accuracy | VAC: +1.5% of reading +5 digit; VDC: +1.0% of reading +3 digit |
| Frequency range | 50/60 Hz |
| Max measuring current | ≤1.0 mA (400 VAC), ≤1.5 mA (690 VDC) |
| Input impendance | ≤1 MΩ |
| Display | 2000-count LCD, with analog bar graph and backlight |
| Dimensions (L x W x H) | 97/16" x 31/16" x 19/16" (24 x 7.8 x 4 cm) |
| Power | Two AAA batteries (included) |
