Digi-Sense 1-Zone Temperature Controller; Ramp/Soak, Type K, 120V/12A - WD-36225-67

Item #:
DS-WD-36225-67
Brand:
Digi-Sense
Digi-Sense 1-Zone Temperature Controller; Ramp/Soak, Type K, 120V/12A - WD-36225-67
$1,493.10
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Digi-Sense 1-Zone Temperature Controller; Ramp/Soak, Type K, 120V/12A - WD-36225-67

Digi-Sense 1-Zone Temperature Controller; Ramp/Soak, Type K, 120V/12A - WD-36225-67

$1,493.10

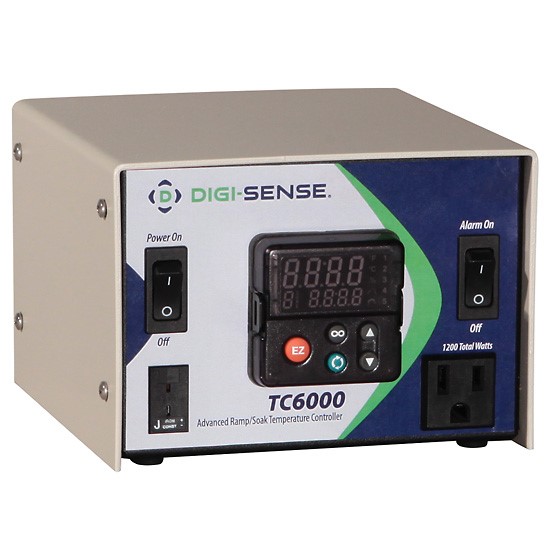

WD-36225-67 1-Zone Temperature Controller; Ramp/Soak, Type K, 120V/12A by Digi-Sense

These controllers are designed for controlling multiple steps in a predetermined temperature processes, and features modern control technology that produces greater temperature stability. The Ramp/Soak feature of this control allows up to a 40-step profile, which can be configured from the provided software. You can profile temperature, time, hold, soak and end steps to create the ideal profile for your process. Auto-tune minimizes setpoint overshoot and features the ability to learn your process producing greater stability. The built in adaptive control technology provides even tighter control for these demanding applications. The controller also features an audible alarm function, temperature selectable and one panel mounted receptacle that accept a three-prong plug. Select from models for types J, K, or T thermocouples with miniconnectors, or 100 ohm platinum RTD probes. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.

  • Models available for type J, K, or T thermocouples or RTD probes
  • Software allows for data point collection and custom designed interface
  • Program up to a 40-step profile

Includes

Software, 6' detachable power cord and a lattice support bracket

DIN Size 1/16
Min Temperature (° F) 0
Max Temperature (° F) 149
Min Temperature (° C) -18
Max Temperature (° C) 65
Accuracy 0.1% of span, ±1.0°F/°C
Resolution 1°, 1.0° or 1.00°
Control Input Thermocouple Yes
Control Output 1 SSR
Alarm Output Yes
Communication Output RS-232
Display Type LED
Height (in) 4.25
Width (in) 5.875
Depth (in) 6.5
Height (mm) 107.95
Width (mm) 149.225
Depth (mm) 165.1
Description 1-Zone Temperature Controller; Ramp/Soak, Type J, 120V/12A
